FC-4C-03120-N

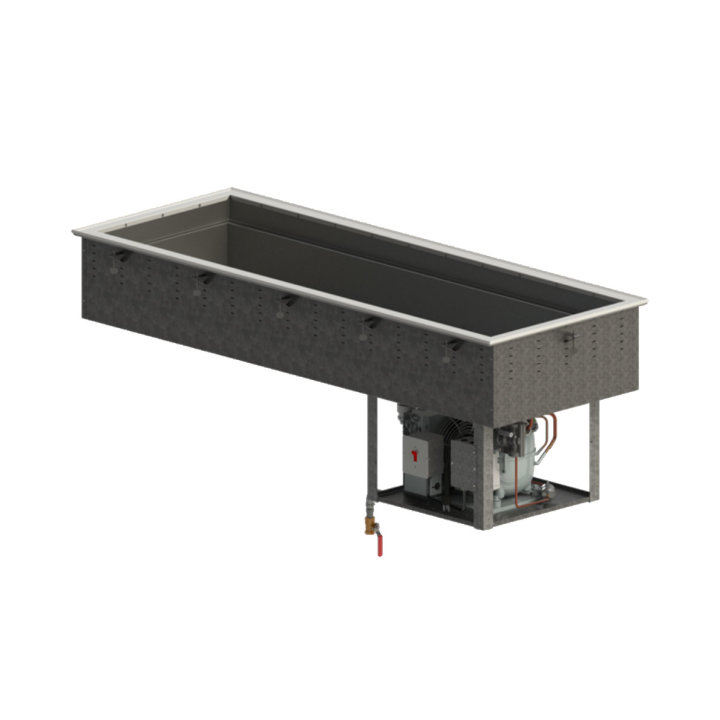

Three-well 120-volt NSF 7-certified refrigerated modular drop-in cold well
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
California’s Proposition 65, officially known as the Safe Drinking Water and Toxic Enforcement Act, is intended to protect the state’s drinking water sources from contaminants that may be harmful. It has recently been amended, and the change that impacts Vollrath requires more specific labeling for some of our products that contain chemicals identified in Proposition 65.
Hold all your deliciously prechilled food at ideal serving temperatures with the refrigerated modular drop-in cold well by Vollrath. The fabricated well and flange are made of strong 300-Series stainless steel that promises years of use, and the exterior is constructed of 20-gauge galvanized steel for impressive durability. The refrigeration coils surround the exterior side walls of the well for maximum cooling, and the thick polyurethane insulation helps maintain cold temperatures and improves energy efficiency. With a 3-inch recessed design, this drop-in cold well keeps food low, minimizing the impact of ambient air, and the deep design accommodates 6-inch-deep pans easily. The condensing unit is suspended directly below the well to maximize space, while the full-perimeter drip edge contains spills and condensation. Designed for top-mount installation, this drop-in cold well features a 6-foot cord and plug, meaning no hardwiring is required, ensuring quick, convenient installation.
- Made in the USA
- 300-Series stainless steel fabricated well and flange promise years of use
- 20-gauge galvanized steel exterior is impressively durable
- Thick polyurethane foam insulation helps maintain cold temperatures and improves energy efficiency
- Uses R513A, a nonflammable low Global Warming Potential (GWP) refrigerant
- Refrigeration coils surround the exterior side walls for maximum cooling
- Condensing unit suspended right below well for convenience
- Flat work surface around opening
- Full-perimeter drip edge contains spills and condensation
- NSF-certified
- Designed for top-mount installation
- Deep well fits 6-inch-deep standard 12" x 20" pans with adaptor bars
- 3-inch recess lowers food pan into well and shields it from ambient air
- 1-inch integral drain
- Remote on-off switch with 4-foot cord
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | Standard Drip Free Flange |
| UPC | 671080849232 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 26 x 41.5 x 23.93 |
| (W) Width (IN) | 26 |
| (D) Depth (IN) | 41.5 |
| (H) Height (IN) | 23.93 |
| (W) Width (CM) | 66 |
| (D) Depth (CM) | 105.4 |
| (H) Height (CM) | 60.8 |
Electrical
| Name | Value |
|---|---|
| Voltage | 120 |
Construction
| Name | Value |
|---|---|
| Refrigerant | R513A |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 30 |
| Case Height | 33.5 |
| Case Length | 46.5 |
| Case Lot Cube (ft.) | 27.04 |
| Case Lot Weight (lbs.) | 189.0 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| FILTER DRIER DCL 032 | 351333-1 | $33.60 |
| DROP-IN MOUNTING CLIP | 44179-1 | $2.80 |
| 16 GA. POWER CORD 120V | 17085-1 | $18.70 |
| THUMBSCREW 1/4-20 X 2" | 23035-3 | $4.40 |
| FITTING-DRAIN 1 1/4" X 6" | 21450-3 | $54.60 |
| STRAIN RELIEF - FOR 3/8 CORD | 26543-3 | $1.80 |
| SWITCH-120/277V 15A SINGLE POL | 24787-1 | $33.20 |
| CONNECTOR 2 WIRE WAGO 221-412 | 4350810-1 | $1.30 |
| PRESSURE TRANSDUCER EMBRACO | 353828-1 | $360.30 |
| KIT ELEC PARTS FFU80 EMBRACO | 353831-1 | $156.10 |
| FAN MOTOR 9W EMBRACO | 353829-1 | $397.70 |
| KIT, TXV ORIF1 BP FOR EMBRACO | 353834-2 | $143.00 |
