120 Volt Six-pan Standard Refrigerated Cold Pan

This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

$4104.36 MSRP

$6,840.60 List Price

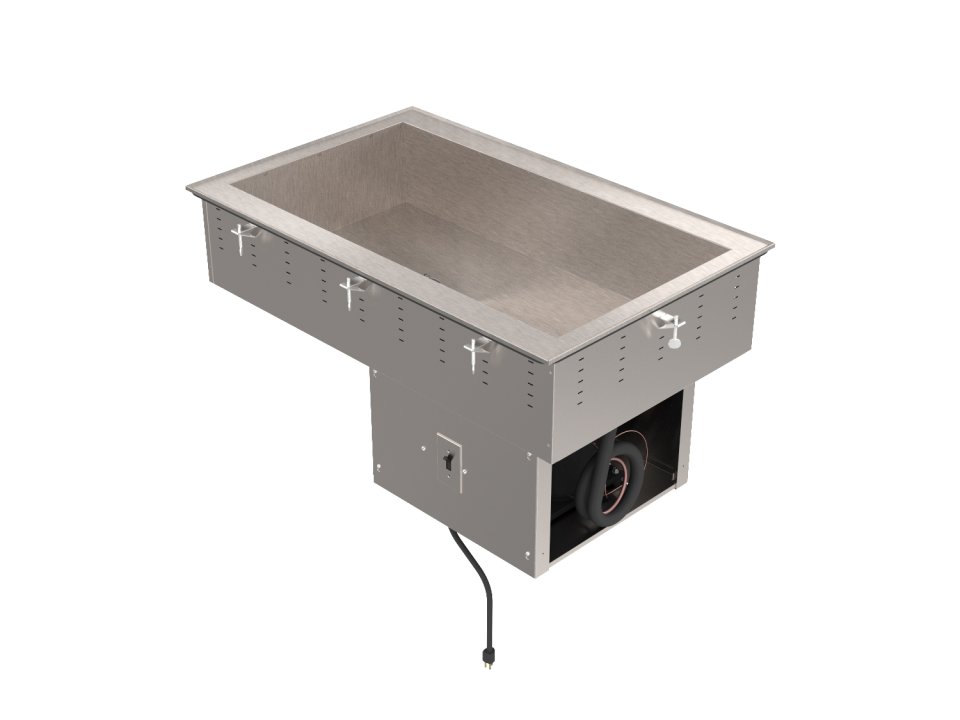

Keep your most popular cold foods chilled throughout the day with the six pan standard drop in refrigerated cold food well! This cold food well features enough room in its compartment to hold six full size food pans. The top is made of stainless steel with a 3/8" overhang on all sides and a full-perimeter drip edge to sit flush with your countertops while keeping them clean of runoff. The 1" drain siphons runoff from inside the well, and the entire unit is insulated with polyurethane foam to ensure premium energy efficiency. This item requires a remote refrigeration system for operation (sold separately).

8" (20.3 cm) deep well
Thick polyurethane foam insulation
Drain plug included
Cold drop-ins are best used for holding periods up to 4 hours - for best performance, stainless steel containers are recommended
* Cutout dimension has 7/8" (2.2 cm) corner radius
NOTE: Item made to order, cannot be cancelled or returned.
Remote units do not include compressors

Product Specifications

Model Information

Name	Value
UPC	029419375424

Unit Dimensions

Name	Value
(W) Width (IN)	81.25
(D) Depth (IN)	26
(H) Height (IN)	34
(W) Width (CM)	206.4
(D) Depth (CM)	66

Electrical

Name	Value
Voltage	120

Case Lot Measurement

Name	Value
Case Lot	1
Case Width	30
Case Height	34
Case Length	87
Case Lot Cube (ft.)	51.35
Case Lot Weight (lbs.)	350.0

Product Accessories

Name	Item #
False Bottom	98855-2

Product Parts

Name	Part #	Price
DROP-IN MOUNTING CLIP	44179-1	$2.80
MOTOR-FAN	352317-1	$199.99
ADAPTOR-1/2" NPT X 1/2 HOSE	26723-3	$3.50
SWITCH TOGGLE LIGHTED	23540-1	$59.47
POWER CORD 120V NEMA 5-20P 72"	17860-1	$34.70
RECEPTACLE 120V-20A	25381-1	$29.95
ADAPTOR-1 1/2 X 1 1/4 PVC	26632-3	$10.70
THUMBSCREW 1/4-20 X 2"	23035-3	$4.40
COMPRESSOR 1/3 HP	25420-1	$1,454.50
STRAIN RELIEF - FOR 3/8 CORD	26543-3	$1.80
SWITCH PLATE FOR 1 TOGGLE SW.	24786-3	$14.66
KIT ELEC PARTS ARE37C3E-IAA	352313-2	$144.10
DRAIN HOSE-5/8"ID CLEAR VINYL	26730-3	$5.60
THERMOSTAT RANCO O10-1416-000	26892-1	$386.10
FITTING-DRAIN 1 1/4" X 6"	21450-3	$54.60
DRYER-SERVICE PARKER #03209200	26960-1	$24.70
