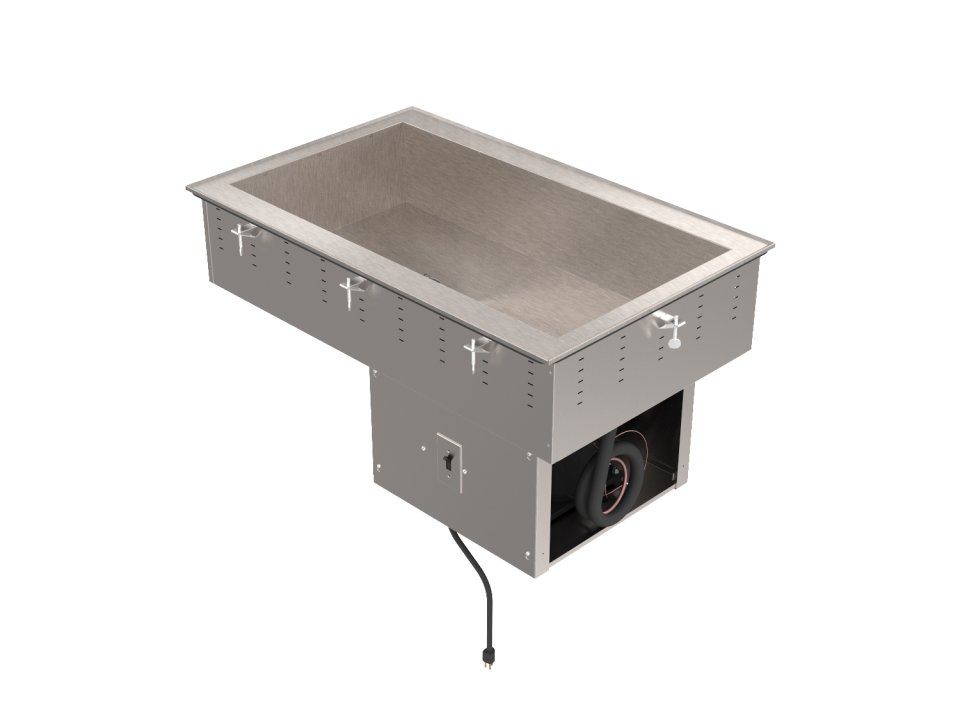

120 Volt One-pan Standard Refrigerated Cold Pan

This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

$2682.12 MSRP

$4,470.20 List Price

Keep your most popular cold foods chilled throughout the day with the one pan standard drop in refrigerated cold food well! This cold food well features enough room in its compartment to hold one full size food pans. The top is made of stainless steel with a 3/8" overhang on all sides and a full-perimeter drip edge to sit flush with your countertops while keeping them clean of runoff. The 1" drain siphons runoff from inside the well, and the entire unit is insulated with polyurethane foam to ensure premium energy efficiency. This item requires a remote refrigeration system for operation (sold separately).

8" (20.3 cm) deep well
Thick polyurethane foam insulation
Drain plug included
Cold drop-ins are best used for holding periods up to 4 hours - for best performance, stainless steel containers are recommended
* Cutout dimension has 7/8" (2.2 cm) corner radius
NOTE: Item made to order, cannot be cancelled or returned.
Remote units do not include compressors

Product Specifications

Model Information

Name	Value
UPC	029419631261

Unit Dimensions

Name	Value
(W) Width (IN)	15
(D) Depth (IN)	26
(W) Width (CM)	38.1
(D) Depth (CM)	66

Electrical

Name	Value
Voltage	120

Case Lot Measurement

Name	Value
Case Lot	1
Case Width	28.5
Case Height	32.5
Case Length	21.25
Case Lot Cube (ft.)	11.39
Case Lot Weight (lbs.)	120.0

Product Accessories

Name	Item #
Full-size Super Pan 3® stainless steel false bottom	70100

Product Parts

Name	Part #	Price
DROP-IN MOUNTING CLIP	44179-1	$2.80
HOT WELL DRAIN SCREEN	44406-2	$2.90
ADAPTOR-1/2" NPT X 1/2 HOSE	26723-3	$3.50
DRAIN HOSE-5/8"ID CLEAR VINYL	26730-3	$5.60
16 GA. POWER CORD 120V	17085-1	$19.09
RECEPTACLE-125V 15A SINGLE	26549-3	$24.00
THUMBSCREW 1/4-20 X 2"	23035-3	$4.40
THERMOSTAT RANCO O10-1416-000	26892-1	$386.10
SWITCH-120/277V 15A SINGLE POL	24787-1	$34.03
STRAIN RELIEF - FOR 3/8 CORD	26543-3	$1.80
SWITCH PLATE FOR 1 TOGGLE SW.	24786-3	$14.66
KIT ELEC PARTS ARE17C4E-IAA	352311-2	$89.50
VALVE-1/2" FNPT MINI-BALL	26896-1	$36.10
DRYER-SERVICE PARKER #03209200	26960-1	$24.70
MOTOR-FAN	352315-1	$124.90
CONDENSING UNIT 1/5HP, R134A	23835-1	$1,055.98
