36673AUTO

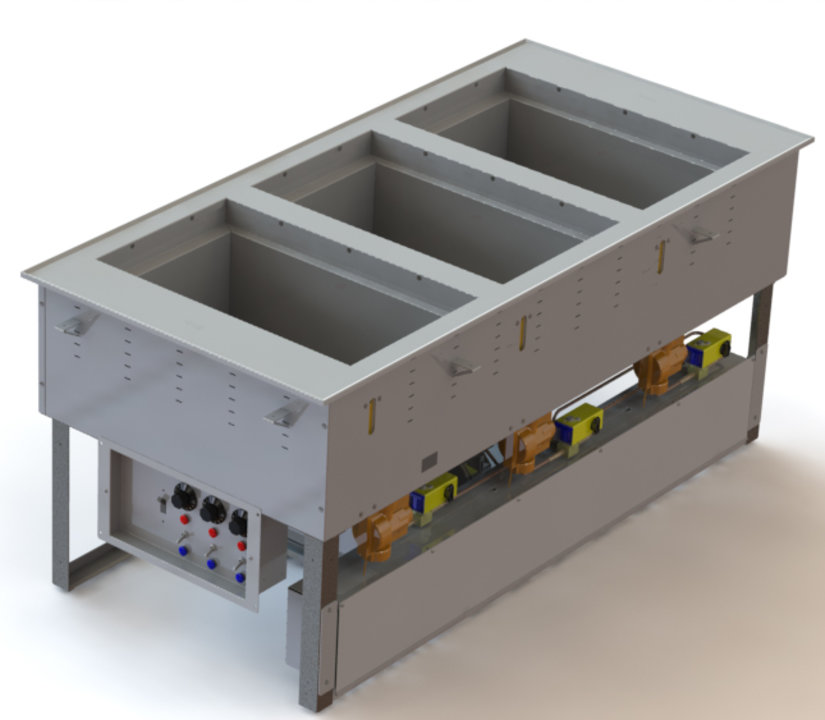

120 Volt Three-Well Hot or Cold Drop-In with Auto Drain
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
Two units in one for the ultimate in convenient serving.
- Versatile hot/cold drop-in units provide the ultimate in convenient serving options
- Allows you to change from a cold salad bar to hot dinner buffet with the flip of a switch
- Wells pass NSF 4 and NSF 7 performance testing for open top hot food holding and refrigerated buffet units. They are listed under NSF/ANSI 169 for special purpose food equipment and devices.
- A full perimeter drip edge contains spills and condensation within the stainless steel countertop area for a clean, appetizing display
- Top and seamless well are 18-gauge 300 series stainless steel
- High-density polyurethane foam insulation surrounds the well exterior for the ultimate in efficient performance and energy savings
- One-well units available in top and bottom mount designs
- Exterior housing is 18-gauge galvanized steel
- Refrigeration coils surround the exterior sidewalls of the well for maximum cooling
- Thermostatic hot control
- Unit comes with 6 ft. (1.5 m) cord and plug and does not require hard wiring
- 4 ft. (1.2 m) flexible control cord
- One year parts and labor warranty - additional four years on compressor
- Note: Item made to order, cannot be canceled or returned.
- Controls wells individually
Product Specifications
Model Information
Name | Value |
---|---|
UPC | 029419957392 |
Electrical
Name | Value |
---|---|
Plug | 5-15P |
Voltage | 120 |
Case Lot Measurement
Name | Value |
---|---|
Case Lot | 1 |
Case Width | 12 |
Case Height | 6 |
Case Length | 17 |
Case Lot Cube (ft.) | 0.71 |
Case Lot Weight (lbs.) | 9.0 |
Product Parts
Name | Part # | Price |
---|---|---|
TEE BARBED 5/8" NYLN 150 PSI | 2913102-1 | $3.28 |
HOSE CLAMP | 26681-1 | $2.60 |
VALVE BODY DRAIN 2-WAY STEAM | 23538-1 | $205.20 |
DRAIN HOSE-5/8"ID HOT WELLS | 26907-3 | $11.80 |
CONNECTOR 3 WIRE WAGO 221-413 | 4350811-1 | $7.86 |
VALVE ACTUATOR NORMAL CLOSED | 23542-1 | $537.50 |
STRAIN RELIEF - FOR 3/8 CORD | 26543-3 | $1.80 |
CONNECTOR 2 WIRE WAGO 221-412 | 4350810-1 | $1.30 |
VALVE INVERTED FLARE CONNECT | 23545-1 | $34.90 |
Product Downloads
CAD / REVIT
Customer Questions
Be the first to ask a question
