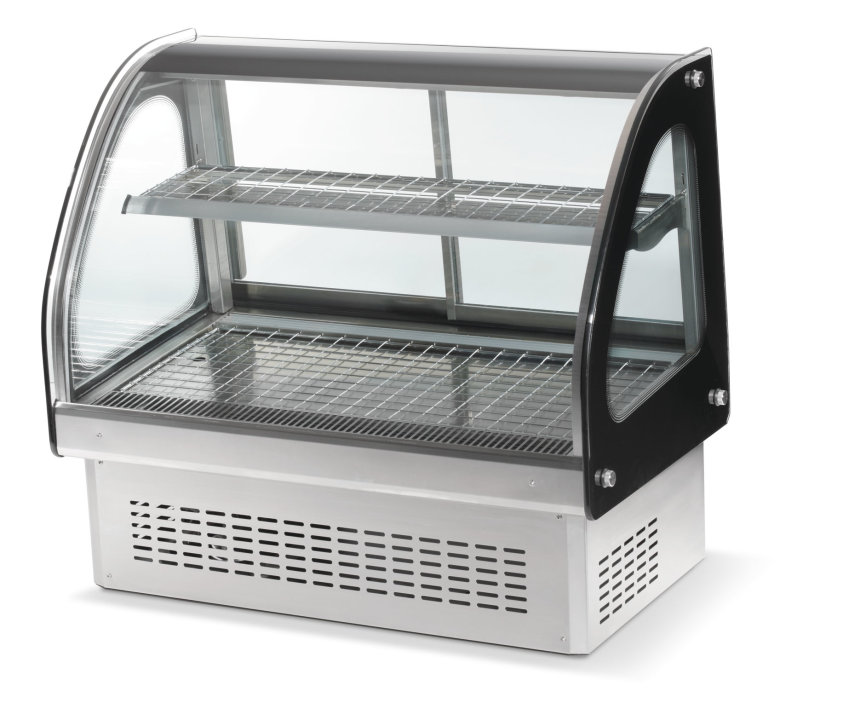

Heated Curved Drop-In Display Case, 36"

40845

Discontinued

Heated Curved Drop-In Display Case, 36"

  • 3 Year on Compressor
  • Intertek ETL Sanitation
  • Intertek ETL

    This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

$3129.96 MSRP Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$5,216.60 List Price List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.

Vollrath's Heated Display Cabinet is a great way to present your food and keep it warm. Suitable for a large variety of foods. Create a full lineup with multiple Heated units or the matching Refrigerated Display Cabinets.

  • Inside lighting strips located both at the top of the cabinet and underneath the upper shelf create optimum food display throughout cabinet
  • Attractively designed base allows display to be used either as a drop-in or as a freestanding countertop unit - use two or more units to create excellent heated merchandising display lineups
  • Dual fans circulate air throughout unit to ensure eventemperature control
  • Double-glazed front glass gives added strength and insulation
  • Lift-and-remove rear sliding doors for easy display changes and end of day cleaning
  • 12 1/4" (31.1 cm) bottom shelf depth to accommodate steam table pans, trays, bowls, or other display items
  • Top shelf - 7 1/2" (19 cm) depth
  • Digitally controlled thermostat for precise and consistent Set
  • Heated units: 104° to 158° F (40° to 70° C) temperature range
  • Note: These items must ship by truck
  • 1 year warranty
  • International models have CE certification only

Product Specifications

Model Information
Name Value
UPC 029419728916
Unit Dimensions
Name Value
Overall Dimensions (IN) 36 x 21 x 32.5
(W) Width (IN) 36
(D) Depth (IN) 21
(H) Height (IN) 32.5
(W) Width (CM) 91.4
(D) Depth (CM) 53.3
(H) Height (CM) 82.6
Size 36
Electrical
Name Value
Amps 5.6
Hz 60
Plug NEMA 5-15P
Voltage 120
Watts 670
Case Lot Measurement
Name Value
Case Lot 1
Case Width 25.25
Case Height 39.5
Case Length 39.5
Case Lot Cube (ft.) 19.05
Case Lot Weight (lbs.) 191.0
Product Parts
Name Part # Price
DEMIST HEATER / LIGHT SWITCH XRDE7005 $8.76
REAR SLIDING DOOR HDE RDE 713 XRDE7420 $200.85
REAR SLIDING DOOR HDE RDE 713 XRDE7421 $204.04
REAR UPPER DOOR TRACK XHDE7071 $42.95
EVAPOURATOR FAN RDE (ALL) XRDE7109 $123.19
FAN COVER XRDE7090 $6.08
ON/OFF SWITCH ADE HDE RDE (ALL XHDE7008 $12.77
LIGHT FIXTURE 12VAC XHDE7001 $26.37
CTRL PANEL BEZEL XRDE7429 $32.14
SIDE THUMBSCREWS(FITS ADE HDE XHDE7011 $48.41
TOP SHELF FOR 36" HDE 7136 XHDE7101 $49.40
DOOR CHANNEL RDE7136 XRDE7426 $96.92
DOOR ROLLER XRDE7431 $25.65
SIDE GLASS(LEFT SIDE FROM REAR XRDE7401 $225.78
SIDE GLASS(RIGHT SIDE FROM REA XRDE7402 $225.67
HDE TEMP CNTR MODEL PJEZSOP100 XHDE7013 $353.81

Product Downloads

CAD / REVIT

For the most updated list for Vollrath products and CAD drawings

Visit VOLLRATH.KCLCAD.COM
