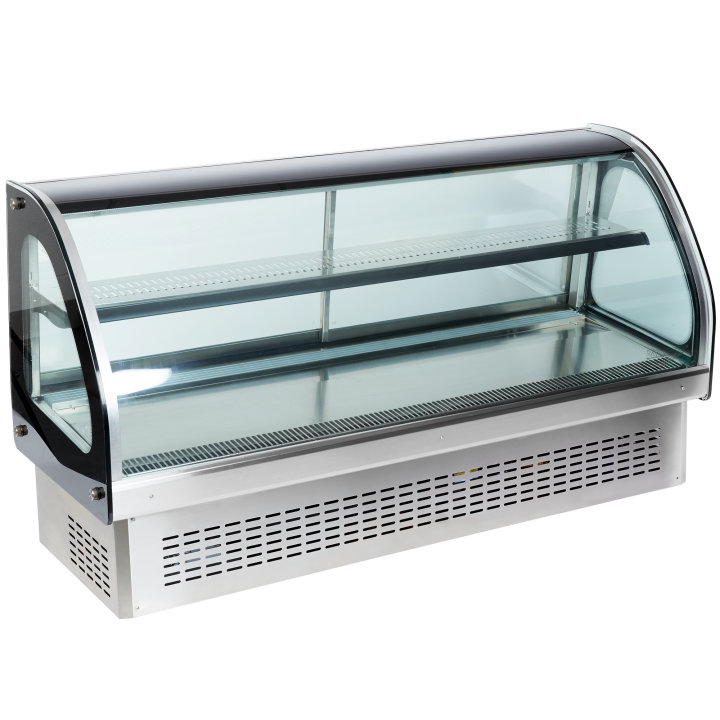

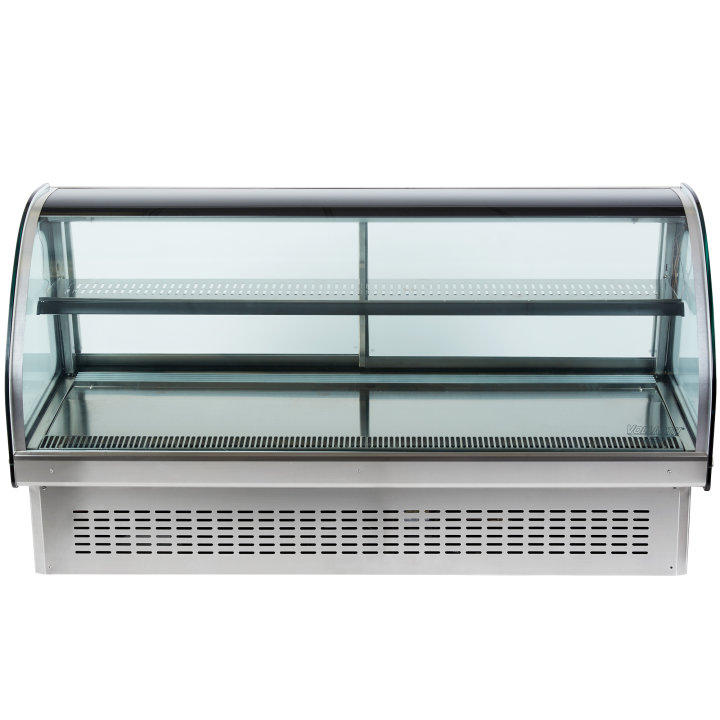

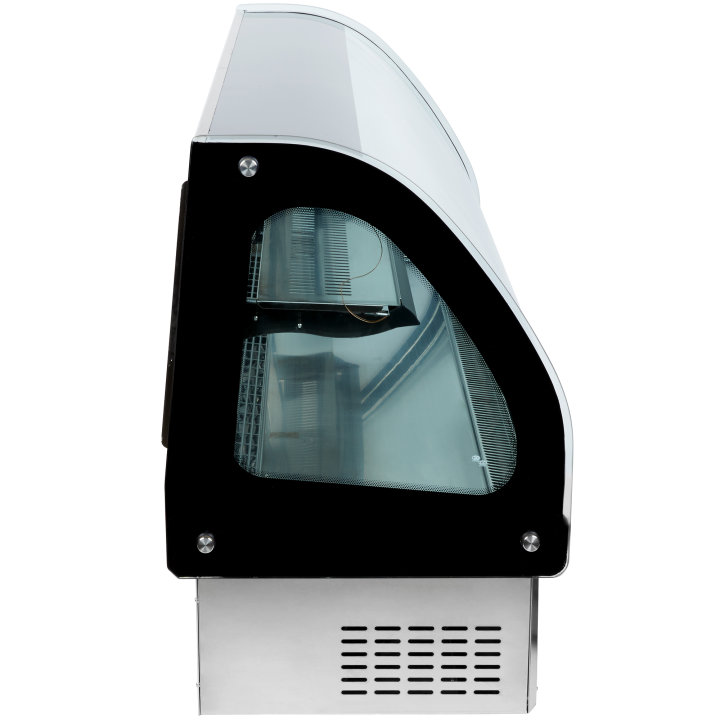

60-inch-wide 120-volt curved-front Cayenne® refrigerated drop-in display case with rear access

This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

$6533.28 MSRP

$10,888.80 List Price

View New Replacement Product

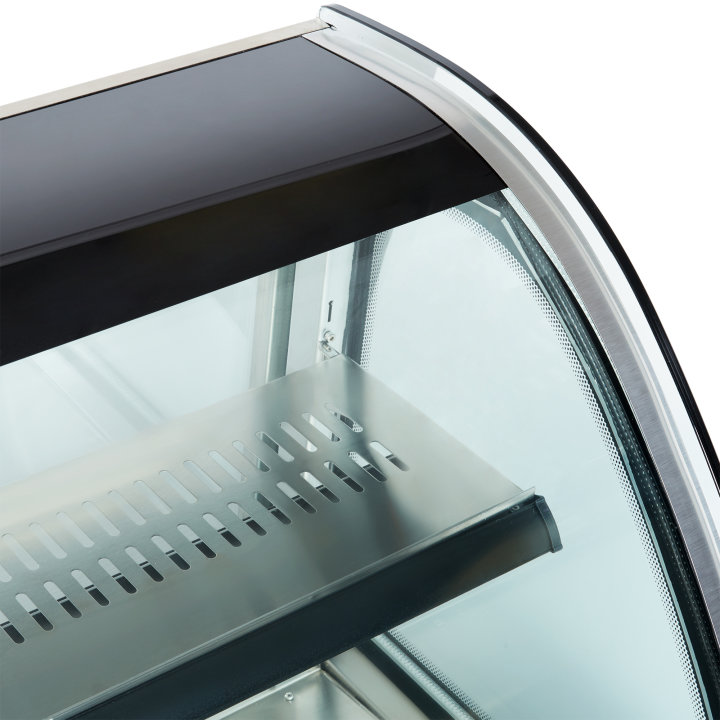

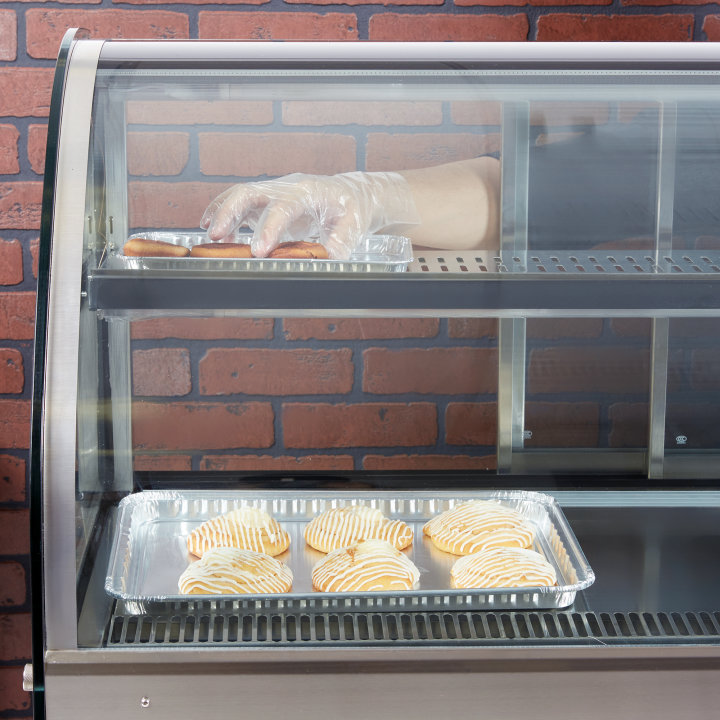

The Vollrath® curved-front Cayenne refrigerated drop-in display case chills and displays a variety of food items. The unique design allows this display to be used either as a drop-in or freestanding countertop unit. Precise temperature controls keep items looking and tasting fresh, while durable triple-glazed glass provides excellent insulation and visibility. Rear sliding doors allow easy access, making food selection and restocking simple and convenient. The two shelves provide plenty of room for your products, and the interior lighting optimizes food visibility.

Digitally controlled thermostat creates more accurate cooling
Dual fans circulate air for improved temperature distribution
Temperature ranges from 36°F to 46°F to accommodate a large variety of food products

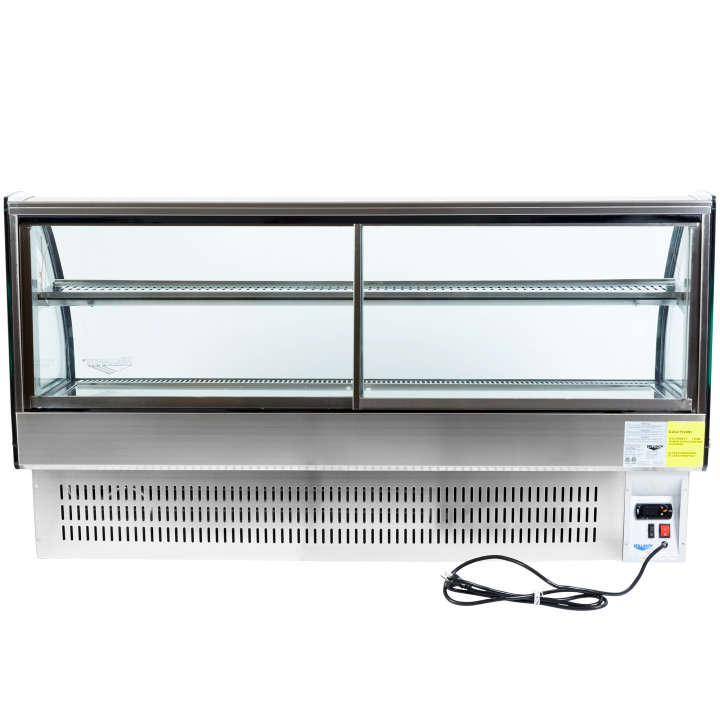

Rear doors lift out for easy cleaning
3-year limited warranty on compressor
Please note that this item must be shipped by truck
International models have CE certification only
These units utilize R134a refrigerant

Product Specifications

Model Information

Name	Value
Model	RDE7160
UPC	029419728961

Unit Dimensions

Name	Value
Overall Dimensions (IN)	60 x 20.875 x 31.75
(W) Width (IN)	60
(WB) Width Base (IN)	56.75
(W2) Secondary Width (IN)	1.625
(D) Depth (IN)	20.87
(DB) Depth Base (IN)	18.125
(D2) Secondary Depth (IN)	19
(D3) Additional Depth (IN)	7.5
(D4) Additional Depth (IN)	1.375
(H) Height (IN)	31.75
(H2) Secondary Height (IN)	23.25
(WC) Width Cutout (IN)	58
(DC) Depth Cutout (IN)	19
(W) Width (CM)	152.3
(WB) Width Base (CM)	144.1
(W2) Secondary Width (CM)	4.1
(D) Depth (CM)	53
(DB) Depth Base (CM)	46
(D2) Secondary Depth (CM)	48.3
(D3) Additional Depth (CM)	19
(D4) Additional Depth (CM)	3.5
(H) Height (CM)	80.6
(H2) Secondary Height (CM)	59.1
(WC) Width Cutout (CM)	147.3
(DC) Depth Cutout (CM)	48.2
Size	60

Electrical

Name	Value
Amps	4.4
Cord Length (IN)	72
Cord Length (CM)	183
hp	1/4
Hz	60
Plug	NEMA 5-15P
Voltage	120

Weight

Name	Value
Weight (LB)	274
Weight (KG)	124.3

Case Lot Measurement

Name	Value
Case Lot	1
Case Width	25.5
Case Height	41.25
Case Length	63.5
Case Lot Cube (ft.)	34.36
Case Lot Weight (lbs.)	395.0

Product Parts

Name	Part #	Price
DEMIST HEATER / LIGHT SWITCH	XRDE7005	$10.20
LIGHT FITTING RDE 60"	XRDE7302	$154.00
REAR UPPER DOOR TRACK	XHDE7071	$50.30
BALLAST 30WT-120V RDE 48"	XRDE7029	$64.70
DOOR CHANNEL RDE7160	XRDE7428	$120.00
FAN COVER	XRDE7090	$6.08
ON/OFF SWITCH ADE HDE RDE (ALL	XHDE7008	$14.90
LIGHT RDE T8-30W 1219MM/48"	XRDE7303	$25.10
FRONT GLASS RDE7160	XRDE7405	$218.10
FEET(FITS HDE RDE ADE)	XHDE7012	$103.80
EVAPOURATOR FAN RDE (ALL)	XRDE7109	$144.10
CONDENSOR FAN RDE (ALL)	XRDE7108	$143.50
RDE TEMP CNTR MODEL PJEZSOP100	XRDE7004	$474.90
SIDE THUMBSCREWS(FITS ADE HDE	XHDE7011	$56.60
BOTTOM SHELF HDE RDE 7160	XRDE7411	$25.90
REAR SLIDING DOOR HDE RDE 716	XRDE7425	$233.70
COMPRESSOR 120V RDE8260	XRDE7024	$2,492.30
DOOR ROLLER	XRDE7431	$30.00
CTRL PANEL BEZEL	XRDE7429	$37.60
SIDE GLASS(RIGHT SIDE FROM REA	XRDE7402	$264.00
LIGHT STARTER ALL RDE MODELS	XRDE7031	$7.70
REAR SLIDING DOOR HDE RDE 716	XRDE7424	$235.50
SIDE GLASS(LEFT SIDE FROM REAR	XRDE7401	$264.20
TOP SHELF HDE RDE 7160	XRDE7408	$27.70
