36500

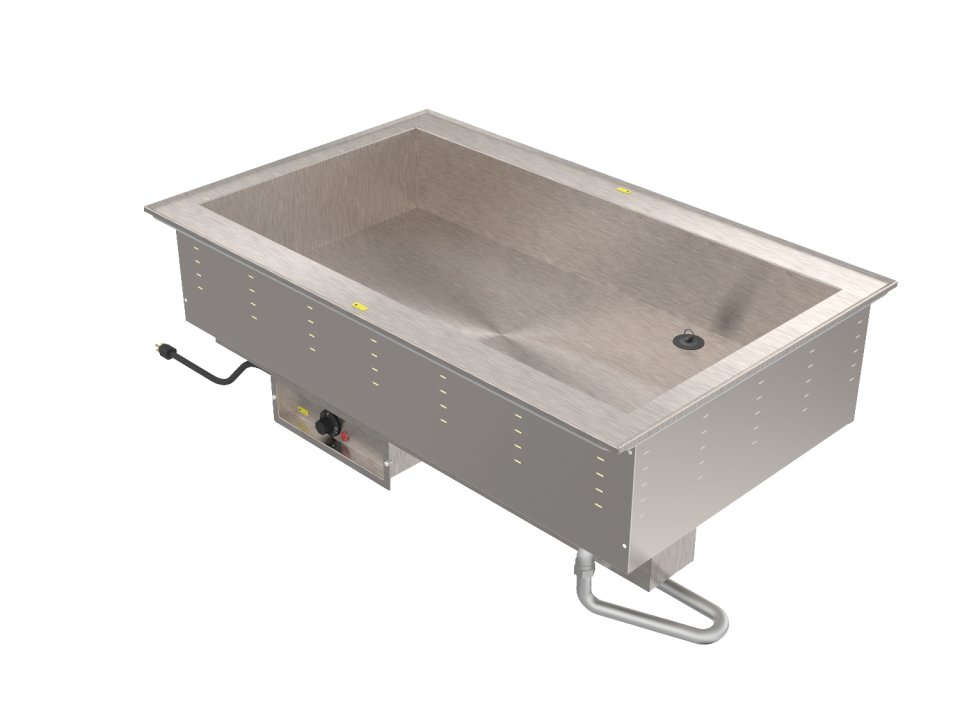

Two-pan 120-volt bain-marie drop-in hot well with thermostatic controls
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
The bain-marie drop-in hot-well by Vollrath features a unique open design that allows you to use templates and larger-than-full-size steam table pans for impressive versatility. Made of 300-Series stainless steel and insulated with high-density glass fiber, this hot well is equally durable and high-performing. The thermostatic controls ensure accurate heating, and the detachable control unit can be mounted remotely for impressive convenience. With the cord and plug configuration, which eliminates the need for hardwiring, and the adjustable mounting clips, installation is an easy task. The dripless design helps prevent countertop condensation, which keeps your food area clean and allows you and your guests to focus on your appetizing food items.
- Made in the USA
- 300-Series stainless steel is durable and long-lasting
- High-density glass fiber insulation traps heat
- Reliable thermostatic controls ensure accurate heating
- Detachable control unit for remote mounting
- Dripless design prevents condensation on counters
- Cord and plug configuration eliminates the need for hardwiring
- NSF-certified
- Mounting clips adjust to varying countertop thicknesses, from stainless steel to laminate surfaces
- 6 ⅝-inch depth accommodates 6-inch-deep pans
- 6-foot power cord, 4-foot control cord
- Please note this is a made-to-order item. These items require additional time for fulfillment. Made-to-order items cannot be changed, canceled or returned and may be subject to a minimum-order quantity. Contact your Vollrath sales representative for details.
Product Specifications
Model Information
Name | Value |
---|---|
UPC | 029419673995 |
Unit Dimensions
Name | Value |
---|---|
(W) Width (IN) | 29 |
(D) Depth (IN) | 26 |
(H) Height (IN) | 0 |
(W) Width (CM) | 73.7 |
(D) Depth (CM) | 66 |
Electrical
Name | Value |
---|---|
Amps | 10.4 |
Voltage | 208 |
Watts | 1250 |
Case Lot Measurement
Name | Value |
---|---|
Case Lot | 1 |
Case Width | 30 |
Case Height | 34 |
Case Length | 34 |
Case Lot Cube (ft.) | 20.07 |
Case Lot Weight (lbs.) | 106.0 |
Product Parts
Name | Part # | Price |
---|---|---|
DROP-IN MOUNTING CLIP | 44179-1 | $2.80 |
KNOB CONTROL | 23423-1 | $8.98 |
HEATING ELEMENT-120V 625 WATT | 26510-1 | $62.50 |
PILOT LIGHT - RED 125V | 23065-3 | $14.76 |
THRMSTT 144" CAPILARY 96/BX | 17795-1 | $122.10 |
STRAIN RELIEF - FOR 3/8 CORD | 26543-3 | $1.80 |
1" WATTS BALL VALVE #FBV31 | 26766-1 | $72.66 |
THUMBSCREW 1/4-20 X 2" | 23035-3 | $4.40 |
16 GA. POWER CORD 120V | 17085-1 | $19.09 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
