26806
Modular drop-in auto-fill accessory
$1092.90
MSRP
Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$1,821.50
List Price
List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.

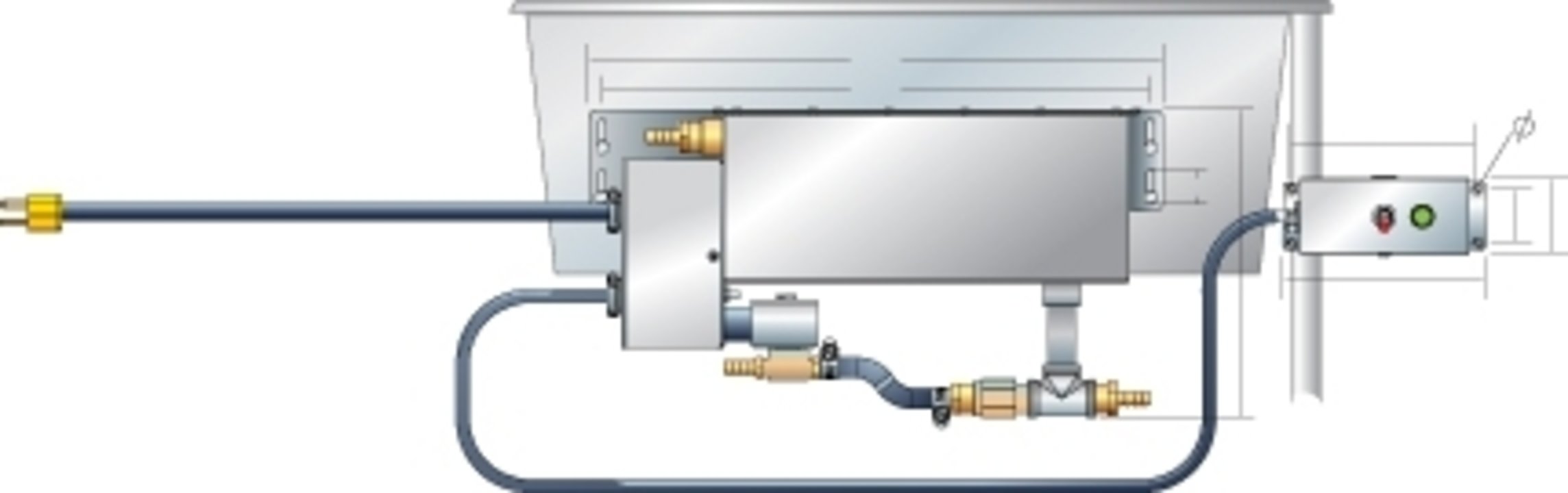

Automate your water-level monitoring for your modular drop-in and enjoy simplified, stress-free operation with the drop-in auto-fill accessory by Vollrath. This auto-fill system is available as a field-installed option using simple tools, and the thoughtful design makes it exceptionally easy to install and use. By utilizing flexible tubing, a simple reservoir with a float switch and a 6-foot cord and plug that does not require hardwiring, this auto-fill accessory eliminates the need to monitor water levels, which reduces labor and operating costs.
- Made in the USA
- Maintains constant water levels in your modular drop-ins and eliminates the need for monitoring
- Reservoir with float switch allows for remote mounting and use with multiple drop-ins
- Connects to manifold drain assembly with flexible tubing and use of simple tools easily
- Flexible tubing supplied for all connections
- Check valve/siphon brake prevents cross contamination of drain and potable water
- Adjustable water level
- 6-foot cord and NEMA 5-15P plug does not require hardwiring
- Control box mounts inside of base enclosure
- Power On/Off toggle switch is easy to use
- Solenoid valve will close if power is interrupted
- Overflow connection provided
- With manifold drain, use with one or more hot wells (12 maximum) or multiple soup wells
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419629305 |
Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 0 |
| (H) Height (IN) | 0 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 13.54 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 16.25 |
| Case Height | 9.25 |
| Case Length | 24 |
| Case Lot Cube (ft.) | 2.09 |
| Case Lot Weight (lbs.) | 13.54 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| WATER RESERVOIR SUB-ASSY | 44081-2 | $367.80 |
| HOSE CLAMP | 26681-1 | $2.60 |
| AUTOFILL SOLENOID SUB-ASSY | 44082-2 | $621.00 |
| 16 GA. POWER CORD 120V | 17085-1 | $18.70 |
| BARB FITTING 1/4" FEMALE 5/PK | 23342-1 | $9.70 |
| SOLENOID VALVE 1/4" 2NC | 23033-1 | $297.30 |
| TOGGLE SWITCH 3/4HP 120-240VAC | 17925-1 | $40.50 |
| TOGGLE CAP-BLACK | 17939-1 | $1.50 |
| AUTOFILL FLOAT SWITCH | 23244-1 | $124.90 |
| PILOT LIGHT - RED 125V | 23065-3 | $14.40 |
| STRAIN RELIEF - FOR 3/8 CORD | 26543-3 | $1.80 |
| NUT KEPS #6-32 | 17019-3 | $0.70 |
Product Downloads
CAD / REVIT
Customer Questions
Be the first to ask a question
