3646210

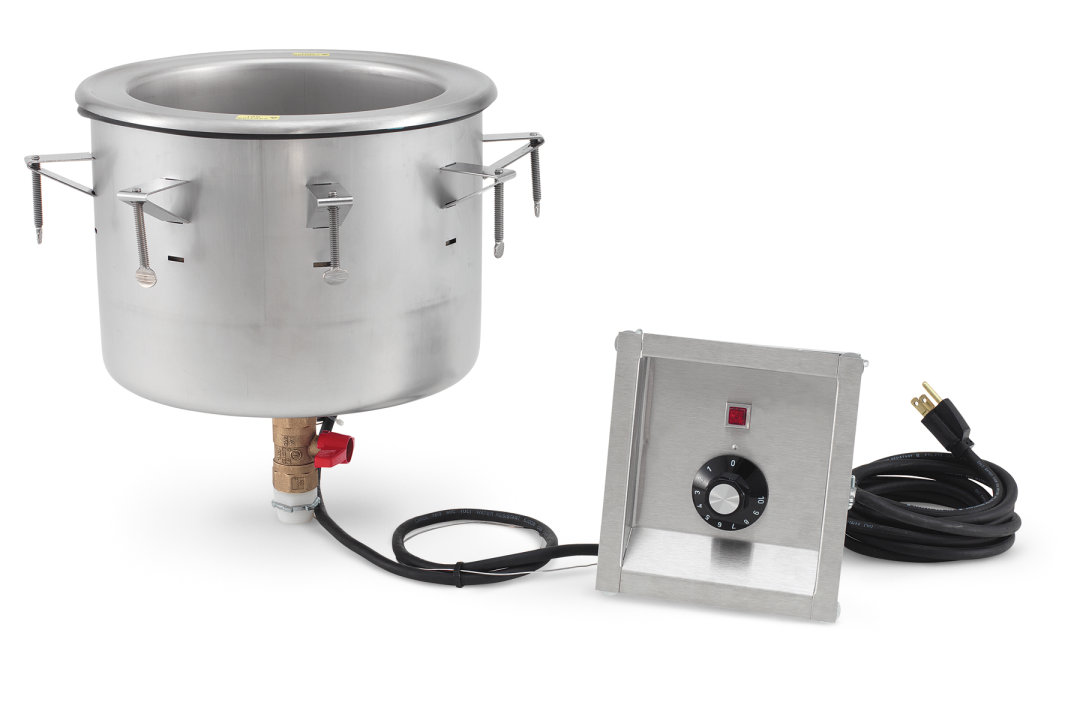

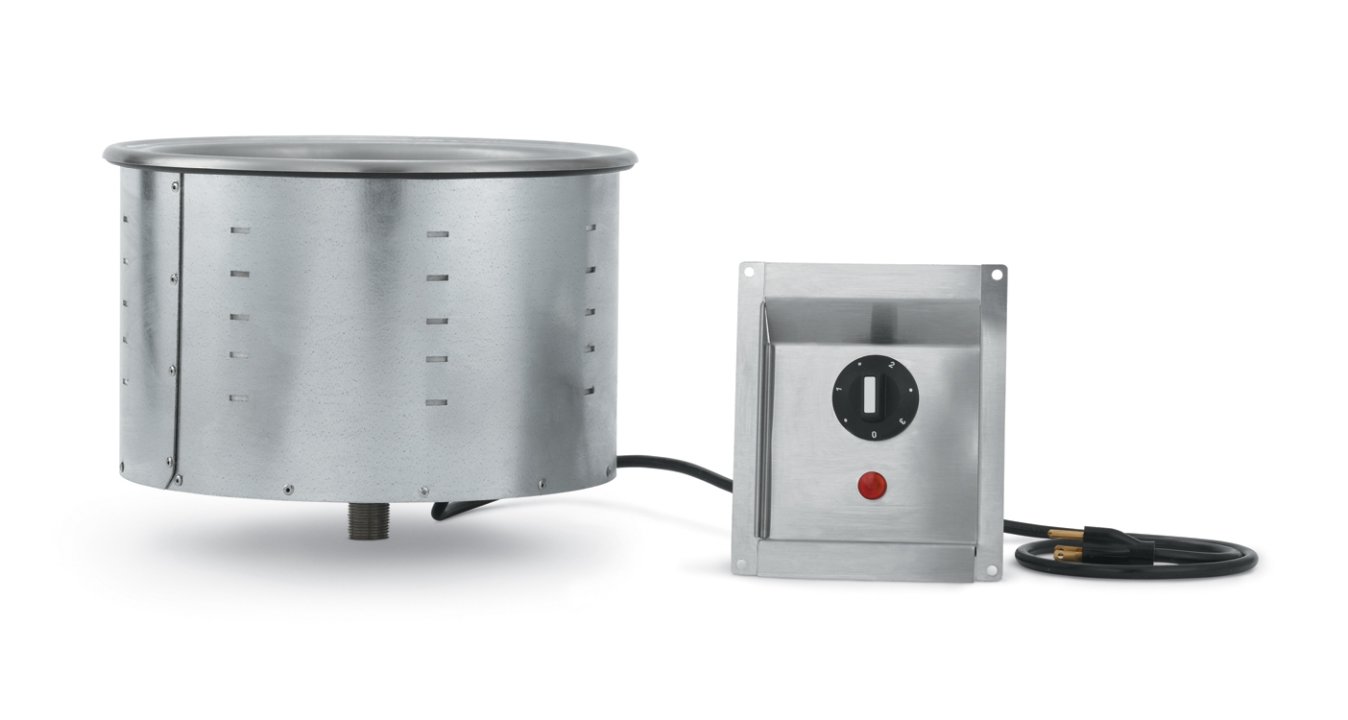

7-quart 120-volt round modular soup drop-in hot well with thermostatic controls
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
$696.23
MSRP
Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$1,160.39
List Price
List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
Serve delicious soups at perfect serving temperatures with the round modular soup drop-in hot well by Vollrath. Made of 300-Series stainless steel and insulated with high-density glass fiber, this hot well is equally durable and high-performing. The 6-foot power cord and 4-foot control cord offer flexibility of placement, with no hardwiring required. The reliable thermostatic controls ensure accurate heating, while the ¾-inch ball valve shutoff drain creates a reliable seal.
- Made in the USA
- Double-wall stainless steel construction is durable and long-lasting
- High-density glass fiber insulation helps trap heat
- Reliable thermostatic controls ensure accurate heating
- NSF-certified
- ¾-inch ball valve shutoff drain creates a tight seal
- 6-foot power cord and 4-foot control cord offer flexibility in placement and don't require hardwiring
- Please note this is a made-to-order item. These items require additional time for fulfillment. Made-to-order items cannot be changed, canceled or returned and may be subject to a minimum-order quantity. Contact your Vollrath sales representative for details.
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419408269 |
Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 0 |
| (H) Height (IN) | 11.68 |
| (DI) Diameter | 11.1875 |
| (H) Height (CM) | 29.7 |
| (DI) Diameter (CM) | 28.4 |
Electrical
| Name | Value |
|---|---|
| Amps | 6 |
| Voltage | 120 |
| Watts | 720 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 16.54 |
Construction
| Name | Value |
|---|---|
| Control Type | Thermostatic Controls |
| Drain Type | No Drain |
| Fill Type | None |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 16 |
| Case Height | 16 |
| Case Length | 16 |
| Case Lot Cube (ft.) | 0.84 |
| Case Lot Weight (lbs.) | 16.54 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| DROP-IN MOUNTING CLIP | 44179-1 | $2.80 |
| CONTROL BOX COVER | 44189-2 | $10.80 |
| HOT WELL DRAIN SCREEN | 44406-2 | $2.90 |
| BAND HEAT SINK 7 QUART | 27744-2 | $63.24 |
| NUT W/WASHER #10-24 ZINC PLT | 21574-3 | $0.72 |
| THERMOSTAT DISC HI LIMIT 175C | 25187-1 | $17.80 |
| 16 GA. POWER CORD 120V | 17085-1 | $19.09 |
| THERMOSTAT DISC REGULAT. 125C | 25166-1 | $27.20 |
| 7QT SOUP DROP-IN WELL ROPE | 2773601-2 | $457.90 |
| BAND HEATER 7QT 120V-720W | 25175-1 | $179.90 |
| FRONT PANEL - 120V | 44187-2 | $79.59 |
| KNOB CONTROL | 23423-1 | $8.98 |
| PILOT LIGHT - RED 125V | 23065-3 | $14.76 |
| CONNECTOR 3 WIRE WAGO 221-413 | 4350811-1 | $7.86 |
| THERMOSTAT 96" CAPILARY | 17816-1 | $104.80 |
| WALL INSULATION 7 QUART | 25168-1 | $15.30 |
| STRAIN RELIEF - FOR 3/8 CORD | 26543-3 | $1.80 |
| BOTTOM INSULATION 7 QUART | 25171-1 | $19.70 |
| THUMBSCREW 1/4-20 X 2" | 23035-3 | $4.40 |
