36140

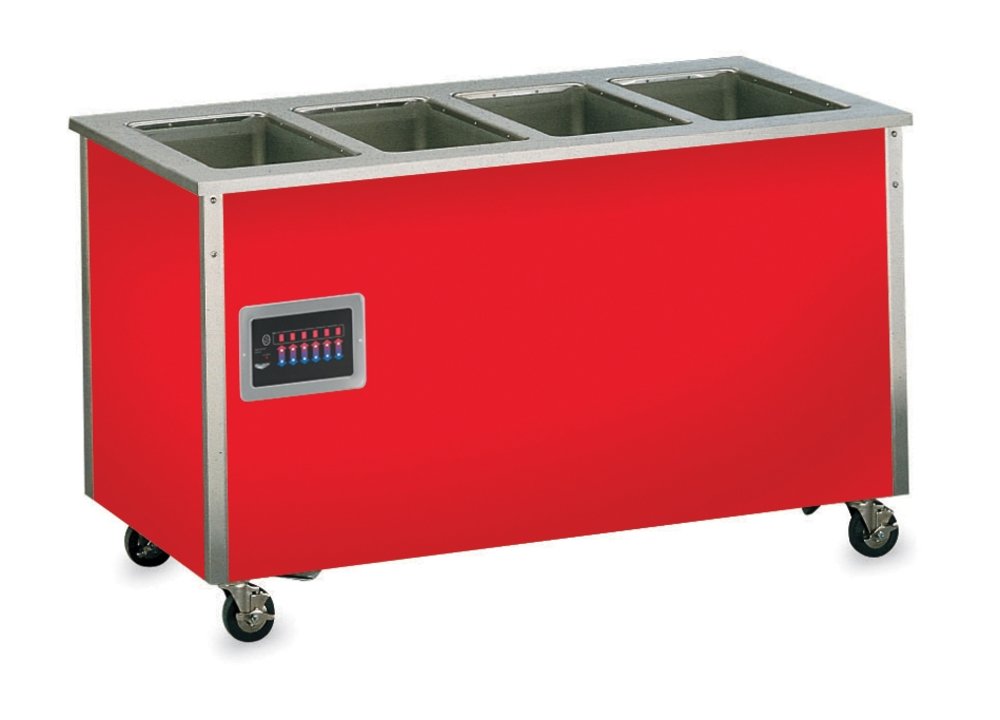

4-Series Hot Food Base with Touch-Temp® Panel
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
$7109.90
MSRP
Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$11,849.84
List Price
List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
High density glass fiber insulation.
- Entire base constructed of corrosion resistant 18 gauge stainless steel with standard black laminate.
- Optional brushed stainless steel exterior finish or choose from hundreds of laminate finishes
- 18 or 16 gauge 300 series stainless steel counters and wells
- 300 series stainless steel tray slides and plate rests
- Heavy-duty 4" (10 cm) swivel casters with brakes
- 5 1/4" (13.3 cm) clearance between floor and bottom of unit
- 18 gauge 300 series steel work surface
- Touch-Temp electronic control
- Optional dial controls
- Manifold hot well drains are standard
- Optional 14 gauge work surface available
- Energy efficient 625W elements
- Drain hose on operator side of base
- NSF listed
- Note: 4-Series equipment orders cannot be cancelled or returned.
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419050307 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 60 x 28 x 30 |
| (W) Width (IN) | 60 |
| (W2) Secondary Width (IN) | 11.875 |
| (D) Depth (IN) | 28 |
| (D2) Secondary Depth (IN) | 19.875 |
| (H) Height (IN) | 30 |
| (H2) Secondary Height (IN) | 5.25 |
| (H3) Additional Height (IN) | 8.5 |
| Caster Size (IN) | 4 |
| (W) Width (CM) | 152 |
| (W2) Secondary Width (CM) | 30.2 |
| (D) Depth (CM) | 71 |
| (D2) Secondary Depth (CM) | 50.5 |
| (H) Height (CM) | 76 |
| (H2) Secondary Height (CM) | 13.3 |
| (H3) Additional Height (CM) | 21.6 |
| Caster Size (CM) | 10 |
Electrical
| Name | Value |
|---|---|
| Cord Length (IN) | 8 |
| Cord Length (CM) | 2.4 |
| Voltage | 120-240 |
Construction
| Name | Value |
|---|---|
| Component Type | Rectangular Base |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 40 |
| Case Height | 67 |
| Case Length | 64 |
| Case Lot Cube (ft.) | 99.26 |
| Case Lot Weight (lbs.) | 595.0 |
Product Accessories
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
Customer Questions
Be the first to ask a question
