46060

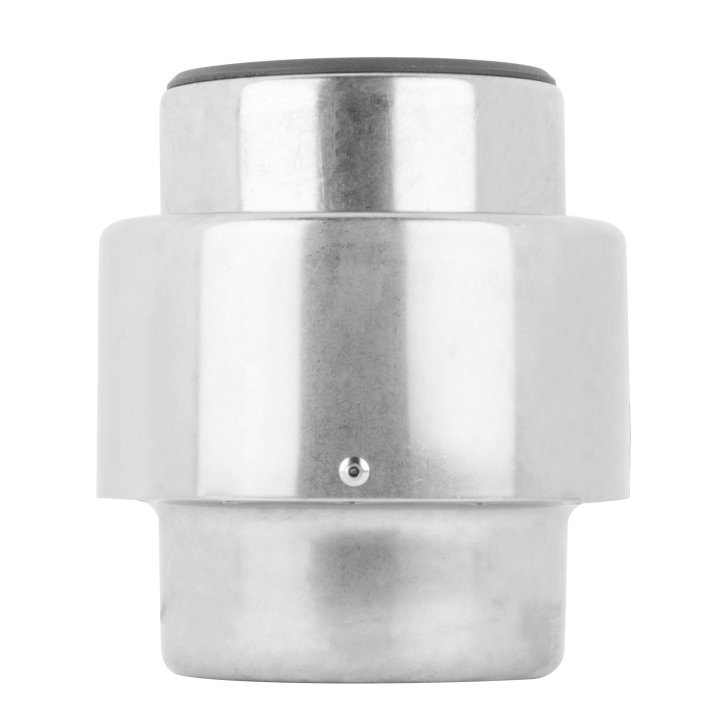

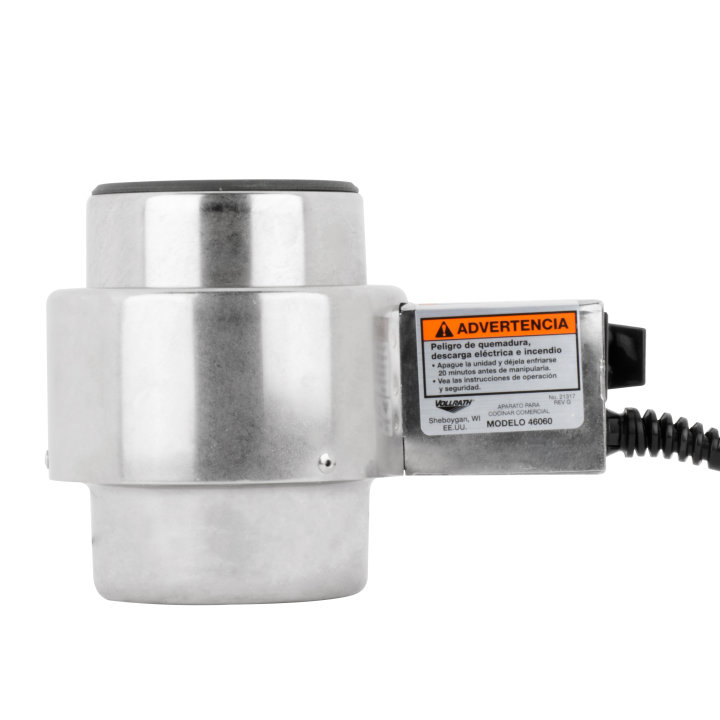

120-volt electric chafer heater
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

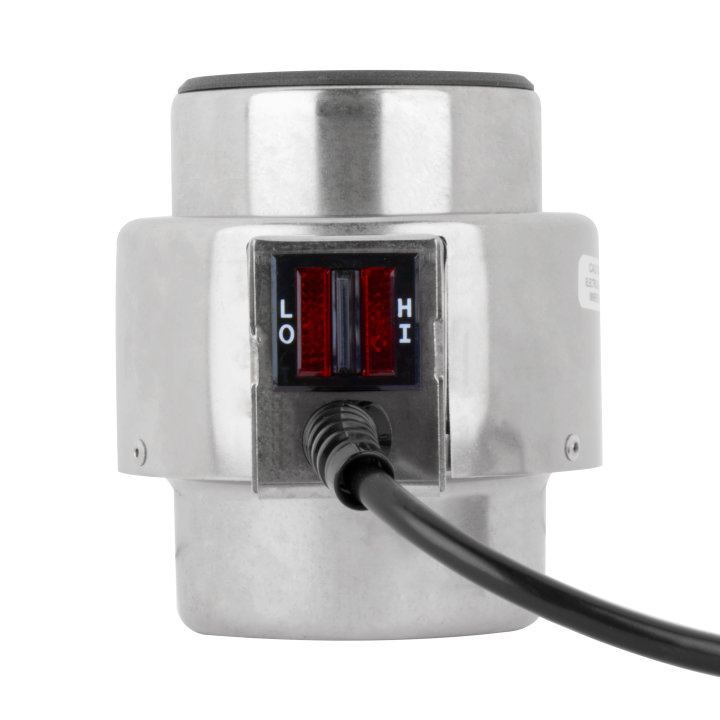

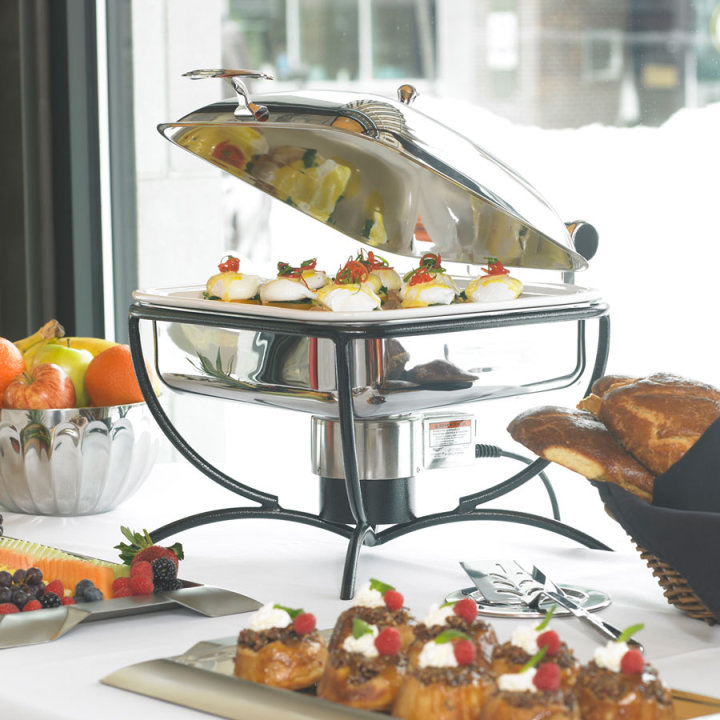

Keep your buffet line food at the proper temperature without the hassle, risks and cost of canned chafer fuel with this electric chafer heater. It’s designed to fit standard fuel cup openings, and the spring-loaded elements maintain full contact with water pans for efficient heat transfer. Set on high, one chafer heater is needed for a full-size chafer, if the water level does not exceed 1/3 inch. There are two power settings and a lighted switch that signals when it’s on.
- Designed to maintain proper serving temperatures
- Sized to fit in standard fuel cup openings

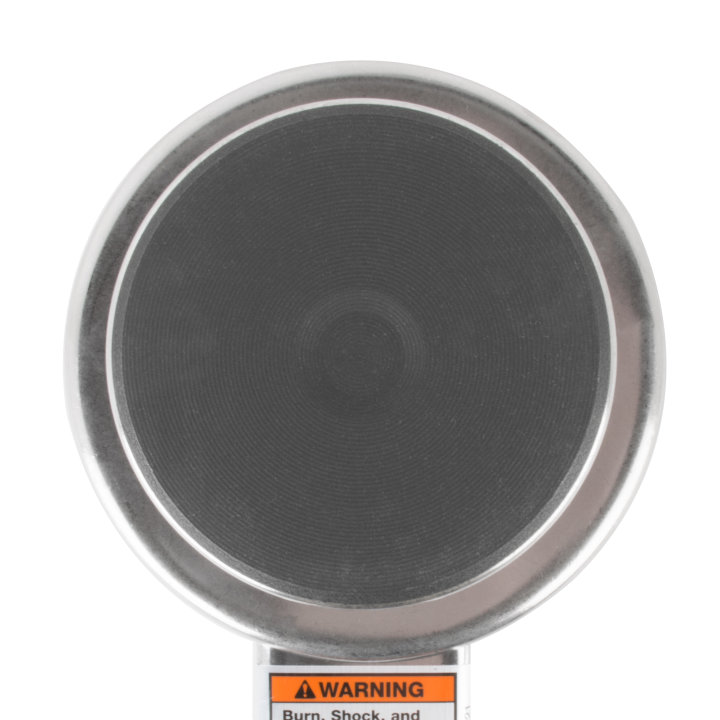

- Spring-loaded element maintains contact with the water pan for improved efficiency

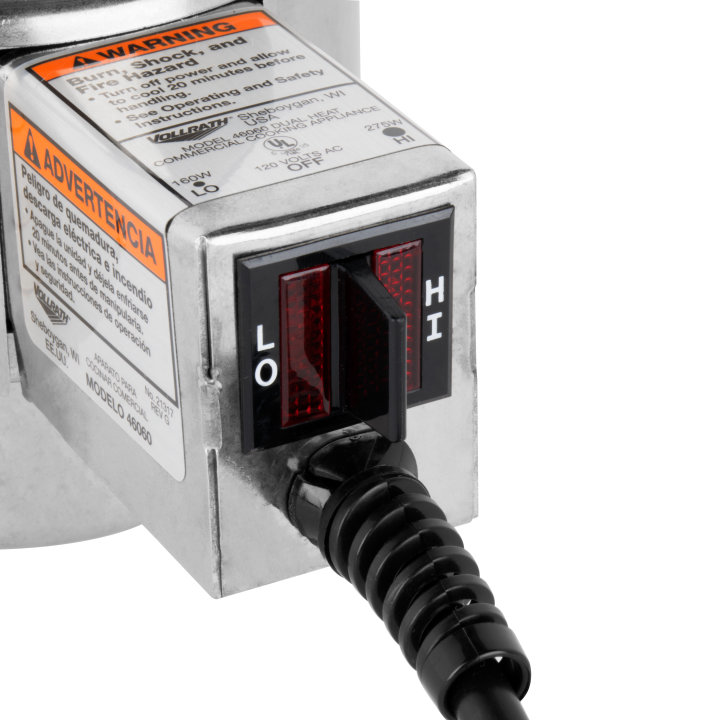

- Two power settings provide versatility
- 6-foot grounded cord
- Only one chafer heater is needed per full size chafer
- Fits all Vollrath chafers except for Vollrath item numbers: 46030, 46328, 46350, 46360, 46430, 46850, 48328, 49525, T3500, T3600, T3605, T3633, T3505
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419220656 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 7.0625 x 4.5625 x 4.25 |
| (W) Width (IN) | 7.06 |
| (D) Depth (IN) | 4.56 |
| (H) Height (IN) | 4.25 |
| (W) Width (CM) | 17.9 |
| (D) Depth (CM) | 11.6 |
| (H) Height (CM) | 10.8 |
Electrical
| Name | Value |
|---|---|
| Amps | 1.9 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 120/230 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 5.25 |
| Case Height | 6.25 |
| Case Length | 10.25 |
| Case Lot Cube (ft.) | 0.2 |
| Case Lot Weight (lbs.) | 4.14 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| 120V CHAFER ELEMENT ASSEMBLY | 351540-2 | $104.10 |
| NUT W/WASHER #10-24 ZINC PLT | 21574-3 | $0.70 |
| WIRE HARNESS / SWITCH - 46060 | 17296-1 | $49.60 |
| POWER CORD (18 GA) 6 FT | 17023-1 | $17.10 |
| HIGH LIMIT SWITCH | 17504-1 | $10.10 |
| LABEL WARNING MODEL 46060 | 21317-1 | $4.00 |
| STRAIN-RELIEF | 21293-1 | $3.50 |
| COMPRESSION SPRING | 21296-1 | $4.00 |
| HEATER BODY ASSEMBLY | 46394-2 | $104.40 |
| HEATER BRACKET | 45824-2 | $15.60 |
| NUT KEPS #6-32 | 17019-3 | $0.70 |
