S5220
DiscontinuedWear-Ever® Sheet Pans
MSRP
$0.00
List Price

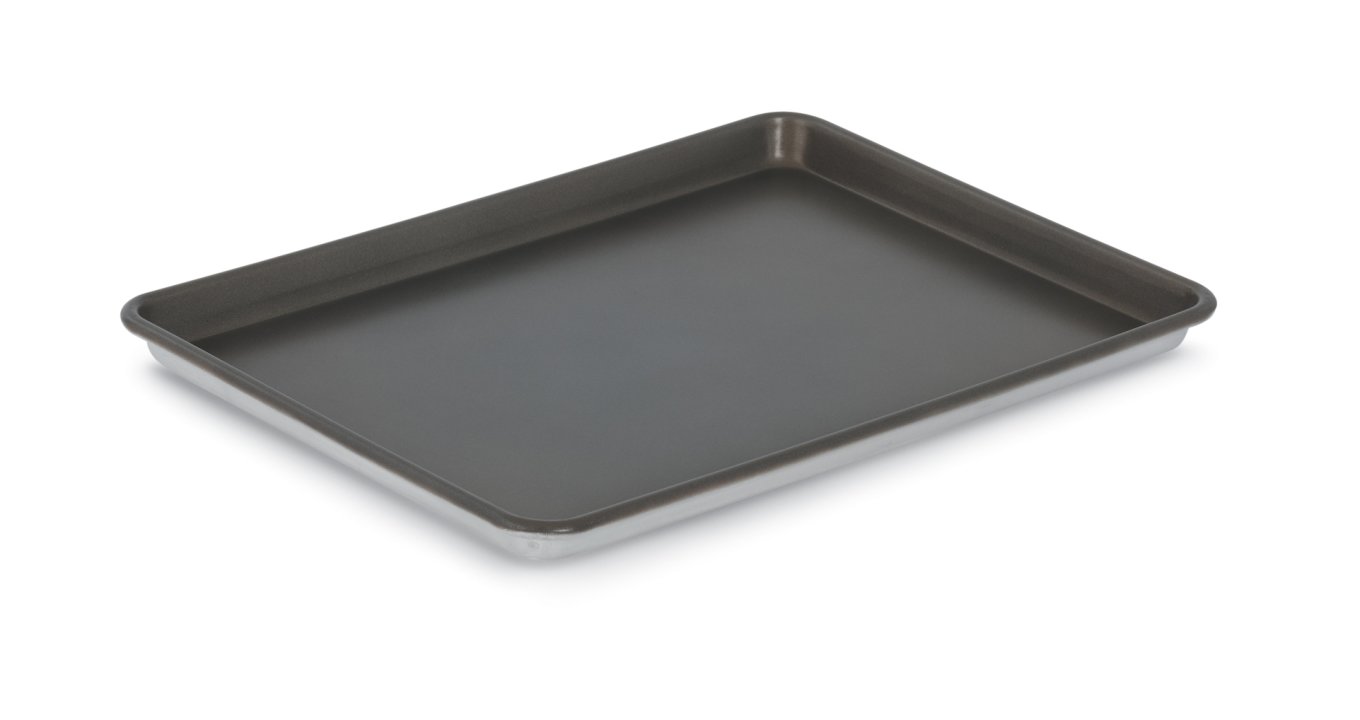

Chosen more often than any other sheet pan in the industry, Wear-Ever® 3000 series aluminum alloy sheet pans drive the standard for dent resistance, easy cleaning properties, and even heat distribution. Proven to be 20% stronger than competing sheet pans.
- Three bead styles: 1) NSF Closed Bead - Fully-encapsulated bead prevents rust and provides excellent strength without unnecessary weight; 2) NSF Open Bead - pans are extra heavy gauge and do not require a reinforcement rod. Open bead pans are NSF listed; and 3)Traditional Closed Bead - Galvanized non-rusting rod reinforces closed bead pan.
- Concave bottom flattens during heating for even heat distribution
- Impact-resistant 3000 series aluminum
- Tapered design for easy stacking
- 16 gauge
- Ideal for smaller size portions
- Coated with non-stick SteelCoat X3™ for easy food release and cleaning
Product Specifications
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 13 x 9.56 x 1.13 |
| (W) Width (IN) | 13 |
| (WU) Usable Width (IN) | 12.5 |
| (WB) Width Base (IN) | 12 |
| (D) Depth (IN) | 9.56 |
| (DU) Usable Depth (IN) | 9 |
| (DB) Depth Base (IN) | 8.6 |
| (H) Height (IN) | 1.13 |
| Usable Height (IN) | 0.3 |
| (W) Width (CM) | 33 |
| (WU) Usable Width (CM) | 31.8 |
| (WB) Width Base (CM) | 30.5 |
| (D) Depth (CM) | 24.3 |
| (DU) Usable Depth (CM) | 22.9 |
| (DB) Depth Base (CM) | 21.8 |
| (H) Height (CM) | 2.9 |
| Usable Height (CM) | 0.8 |
| Size | Fourth |
Construction
| Name | Value |
|---|---|
| Bead Style | Closed |
| Coating or Finish | Nonstick |
| Gauge | 16 |
| Cookware Type | Sheet Pans |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 12 |
| Case Lot Cube (ft.) | 0.45 |
| Case Lot Weight (lbs.) | 10.8 |
Product Accessories
| Name | Item # |
|---|---|
| Quarter-size clear sheet pan cover | 5220CV |
