Full-size 2-inch-deep Super Pan 3® stainless steel steam table pan
Full-size 2-inch-deep Super Pan 3® stainless steel steam table pan
Full-size 2-inch-deep Super Pan 3® stainless steel steam table pan
Full-size 2-inch-deep Super Pan 3® stainless steel steam table pan
Full-size 2-inch-deep Super Pan 3® stainless steel steam table pan

90052

Full-size 2-inch-deep Super Pan 3® stainless steel steam table pan

  • Made in USA
  • National Sanitation Foundation
$30.78 MSRP Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$51.30 List Price List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.

This durable 22-gauge 300-Series stainless steel pan is EN631-1-compliant for worldwide use. It features strong, reinforced spout-shaped corners that make it easy to pour and scoop out food. The pan also features flat edges with higher rims to prevent loss of steam for increased efficiency. Antijam stacking lugs enable easy separation and lifting of the pan.

  • Sturdy 22-gauge 300-Series stainless steel
  • EN631-1-compliant for worldwide use

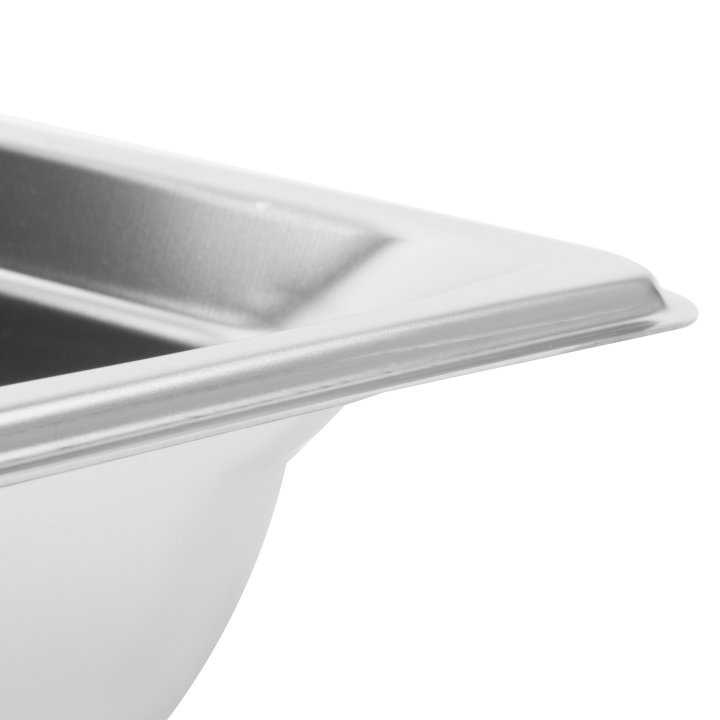

  • Antijamming lugs and reinforced spout-shaped corners
  • Jacob's Pride® lifetime limited warranty
  • Holds up to 7.7 quarts
Full-size 2-inch-deep Super Pan 3® stainless steel steam table pan Inspiration
Full-size 2-inch-deep Super Pan 3® stainless steel steam table pan Inspiration

Product Specifications

Engineering side view
Engineering top view
Model Information
Name Value
UPC 029419314881
Unit Dimensions
Name Value
Overall Dimensions (IN) 12.732 x 20.866 x 2.165
(W) Width (IN) 12.81
(WU) Usable Width (IN) 11.612
(W2) Secondary Width (IN) 11.48
(D) Depth (IN) 20.87
(DU) Usable Depth (IN) 19.78
(D2) Secondary Depth (IN) 19.251
(H) Height (IN) 2.16
(W) Width (CM) 32.3
(WU) Usable Width (CM) 29.5
(W2) Secondary Width (CM) 29.2
(D) Depth (CM) 53
(DU) Usable Depth (CM) 50.2
(D2) Secondary Depth (CM) 48.9
(H) Height (CM) 5.5
Size Full
Volume
Name Value
Capacity, Brimful (QT) 7.7
Capacity, Brimful (L) 7.3
Construction
Name Value
Construction Material Stainless Steel
Material Type Metals
Case Lot Measurement
Name Value
Case Lot 6
Case Width 13
Case Height 4
Case Length 21
Case Lot Cube (ft.) 0.63
Case Lot Weight (lbs.) 16.66
Product Accessories
Name Item #
Full-size Super Pan 3® stainless steel false bottom 70100
Full-size Super Pan 3® stainless steel wire cooling grate 74100
Full-size Super Pan 3® solid stainless steel cover 93100
Full-size Super Pan 3® slotted stainless steel cover 94100
Full-size high-temperature silicone pan band in black N-0001B
Full-size high-temperature silicone pan band in gray N-0001G

Warranty Information

Terms of Sale

Product Downloads

Resource preview REF_PanLayouts_en_NP_2019.pdf

CAD / REVIT

For the most updated list for Vollrath products and CAD drawings

Visit VOLLRATH.KCLCAD.COM
