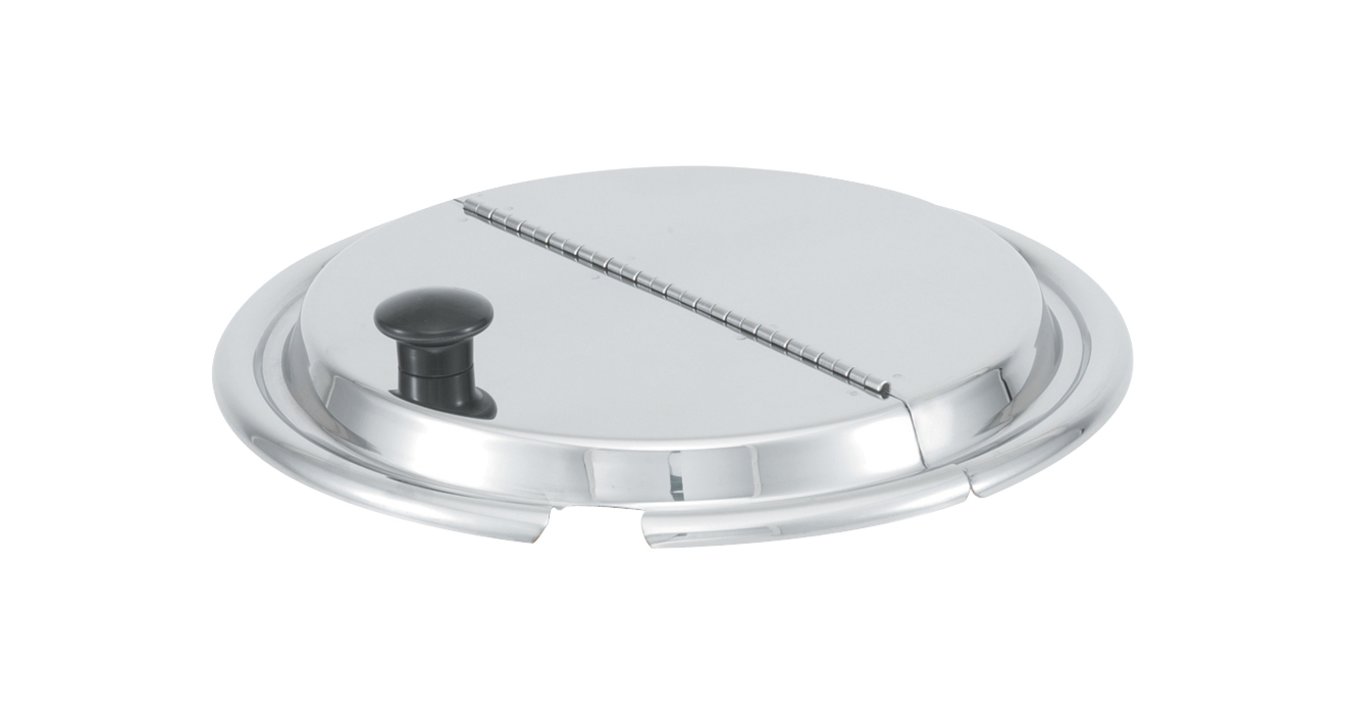

11 7/16-inch stainless steel hinged cover with Kool-Touch® handle
11 7/16-inch stainless steel hinged cover with Kool-Touch® handle

47490

11 7/16-inch stainless steel hinged cover with Kool-Touch® handle

  • Prop 65
$52.26 MSRP Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$87.10 List Price List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.

This mirror-finish stainless steel cover has a welded clip on the stationary side to hold it securely in place. It features a slot for a ladle or spoon. The Kool-Touch handle is heat-resistant, and the cover is easily operated with one hand.

  • Mirror-finish stainless steel
  • Welded clips on stationary side of cover hold it securely in place
  • Kool-Touch knob handle
  • Slot for serving utensil
  • Simple one-handed operation

Product Specifications

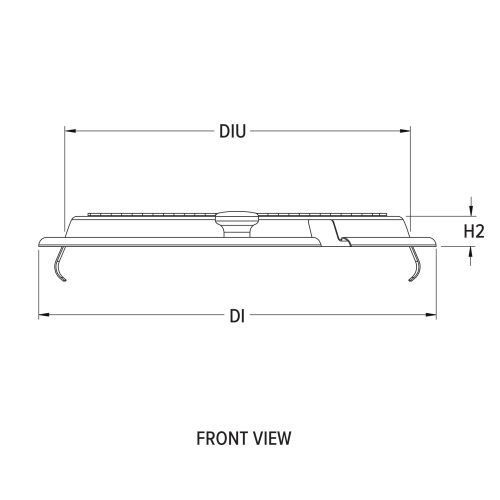

Engineering front view

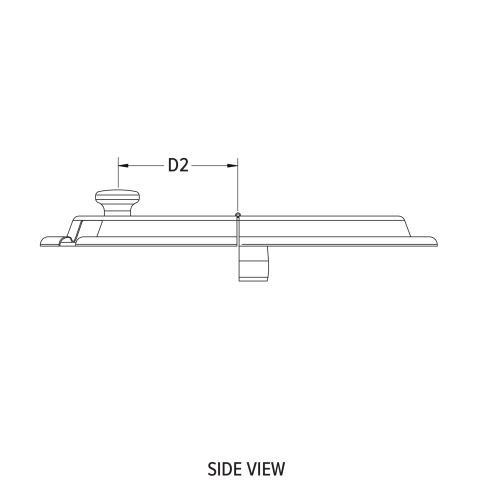

Engineering side view

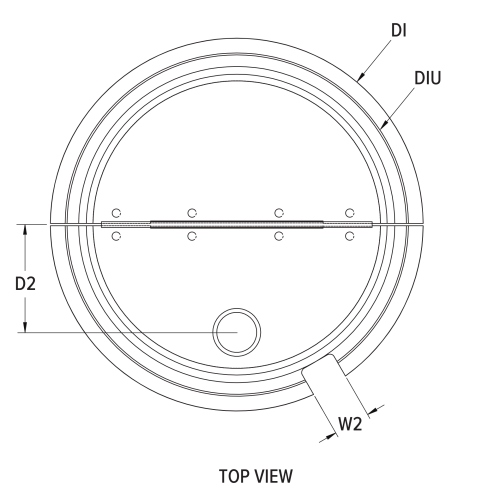

Engineering top view
Model Information
Name Value
UPC 029419100842
Unit Dimensions
Name Value
(W) Width (IN) 11.3
(W2) Secondary Width (IN) 10.782
(W3) Additional Width (IN) 0.963
(D) Depth (IN) 11.3
(D2) Secondary Depth (IN) 3.5
(H) Height (IN) 0.87
(DI) Diameter 11.487
(DiU) Usable Diameter (IN) 10
(W2) Secondary Width (CM) 27.4
(W3) Additional Width (CM) 2.4
(D2) Secondary Depth (CM) 8.9
(H) Height (CM) 2.2
(DI) Diameter (CM) 28.7
(DiU) Usable Diameter (CM) 25.4
Size 10.5
Weight
Name Value
Weight (LB) 1.2317
Construction
Name Value
Construction Feature 1 Hinged
Construction Material Stainless Steel
Material Type Metals
Shape Round
Case Lot Measurement
Name Value
Case Lot 6
Case Width 12.75
Case Height 9.5
Case Length 16
Case Lot Cube (ft.) 0.89
Case Lot Weight (lbs.) 7.39
Product Parts
Name Part # Price
KOOL-TOUCH KNOB 22470-1 $2.60

Warranty Information

Terms of Sale

Product Downloads

Resource preview Cover, Inset, Hinged - Installation Instructions (English)
