52292

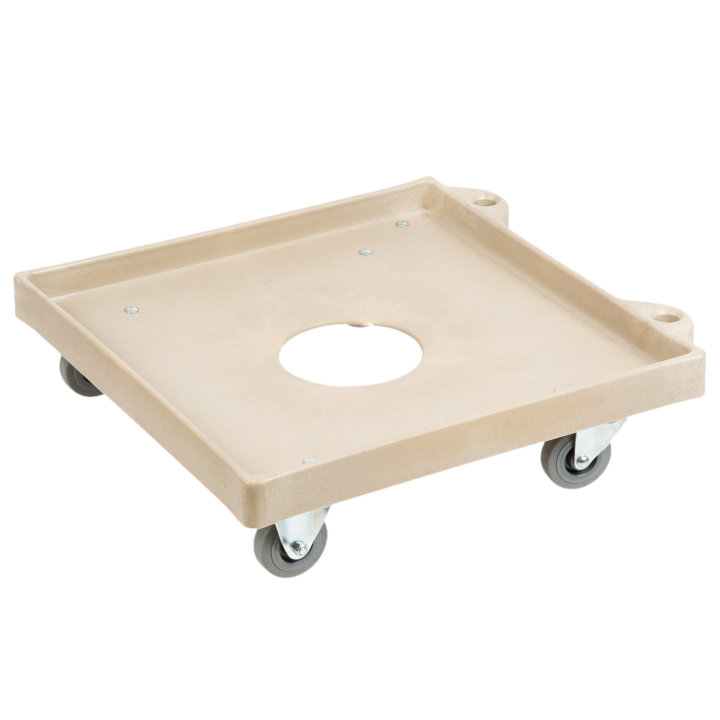

Plastic Rack Dollies
Smoothly and safely transport full-size racks with the Vollrath® plastic rack dolly. Made of strong polypropylene that’s designed to resist rust and withstand elevated temperatures, this dolly is sure to meet your needs. Two swivel back casters provide swift maneuvering, allowing you to easily transport up to 200-pounds. For increased versatility, try pairing this rack dolly with the Vollrath ABS insert cover, which catches drainage when transporting wet racks, or the 27-inch Vollrath handle for easier transportation.
- Supports 200 pounds of full-size racks
- Two 3-inch nonmarking fixed front casters allow easy movement and swivel back casters ensure swift maneuvering
- Specialized formulation of polypropylene is designed to resist rust and withstand elevated temperatures
- Made in the USA
- Vollrath ABS insert cover (item number 52291) and 27-inch handle (part product number 52293) sold separately
Product Specifications
Model Information
Name | Value |
---|---|
UPC | 029419090686 |

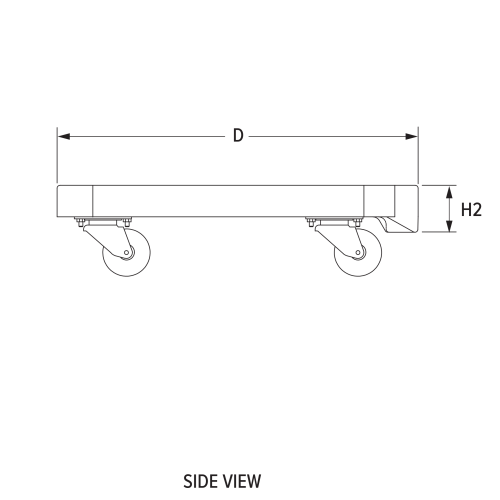

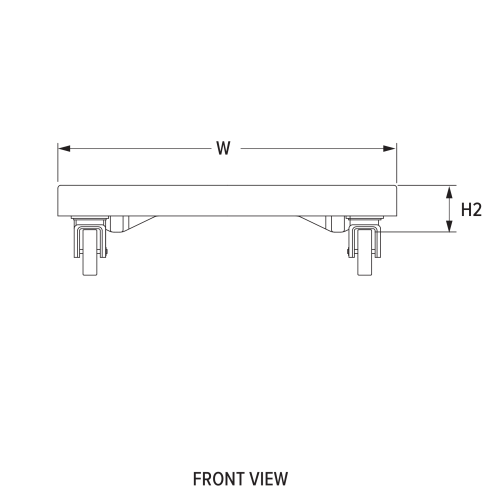

Unit Dimensions
Name | Value |
---|---|
(W) Width (IN) | 21.5 |
(WU) Usable Width (IN) | 20.562 |
(W2) Secondary Width (IN) | 14 |
(D) Depth (IN) | 22.69 |
(DU) Usable Depth (IN) | 20.25 |
(H) Height (IN) | 23.500013 |
(H2) Secondary Height (IN) | 2.975 |
(DI) Diameter | 6 |
(W) Width (CM) | 54.6 |
(WU) Usable Width (CM) | 52.2 |
(W2) Secondary Width (CM) | 35.6 |
(D) Depth (CM) | 57.6 |
(DU) Usable Depth (CM) | 51.4 |
(H2) Secondary Height (CM) | 7.6 |
(DI) Diameter (CM) | 15.2 |
Case Lot Measurement
Name | Value |
---|---|
Case Lot | 1 |
Case Width | 6.375 |
Case Height | 25.375 |
Case Length | 22 |
Case Lot Cube (ft.) | 2.06 |
Case Lot Weight (lbs.) | 11.32 |
Product Parts
Name | Part # | Price |
---|---|---|
SWIVEL CASTER 3" | 9573B | $18.20 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
