CBGHD-18

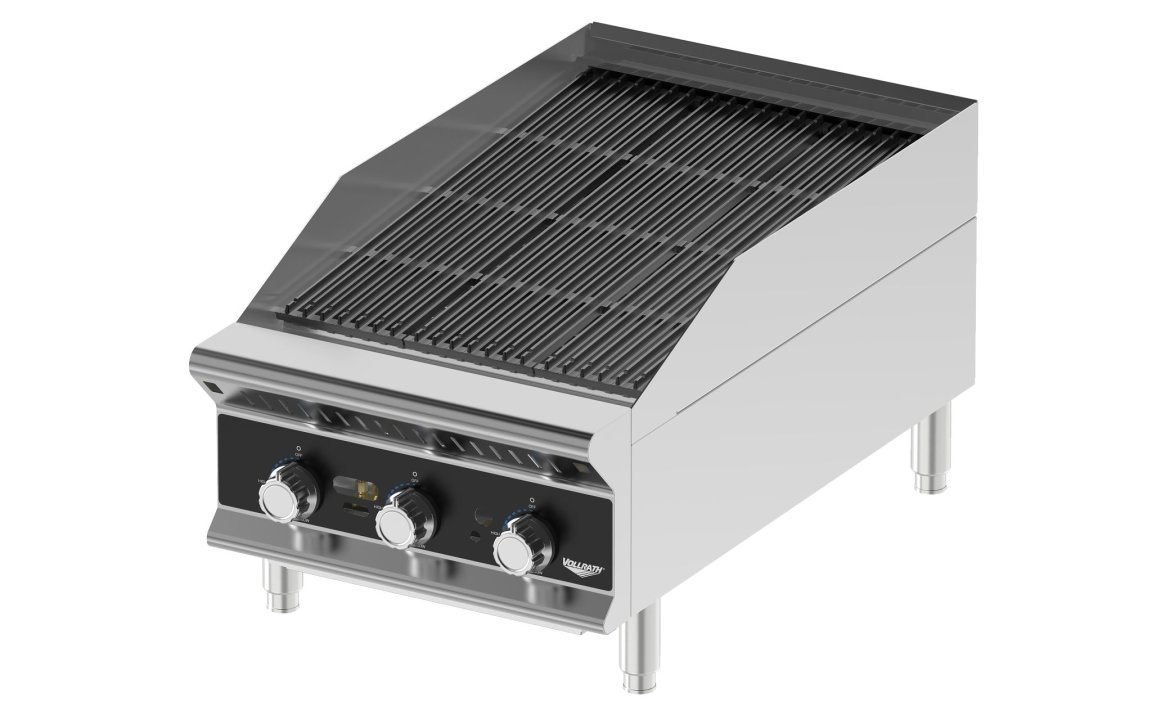

18-inch heavy duty gas radiant charbroiler
Conforms to NSF/ANSI STD 4
This symbol represents food service equipment that is certified to to use in the production of food intended for human consumption, or the equipment is certified for use in an environment where food intended for human consumption is produced.
Conforms to ANSI STD Z83.11-2016. Certified to CSA STD 1.8-2016
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.
Our heavy-duty gas charbroiler performs like a powerhouse, thanks to high-output burners and a durable, welded stainless steel design. You’ll appreciate the versatility too, thanks to reversible grill plates — a narrow side with fat-draining channels, and a flat, wide surface for delicate items like fish. Angled adapter bars allow plate adjustment for slower cooking, fewer grease flare-ups, and food that’s grilled to perfection.
- 18-inch charbroiler’s 3 burners provide 60,000 BTUs
- Heavy-duty cast-iron radiants heat quickly and evenly
- Thick stainless steel splashes and grates are easy to clean
- Valve-protecting metal knobs are guaranteed for life
- Heavy-duty legs make leveling safe and simple
- Ships natural-gas-ready; includes propane conversion kit
- Radiant kit included; lava rock kit available separately
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419432509 |
Gas Specifications
| Name | Value |
|---|---|
| Output (BTU) | 60000 |
| Number of Burners | 3 |
| Pilot Type | Standing |

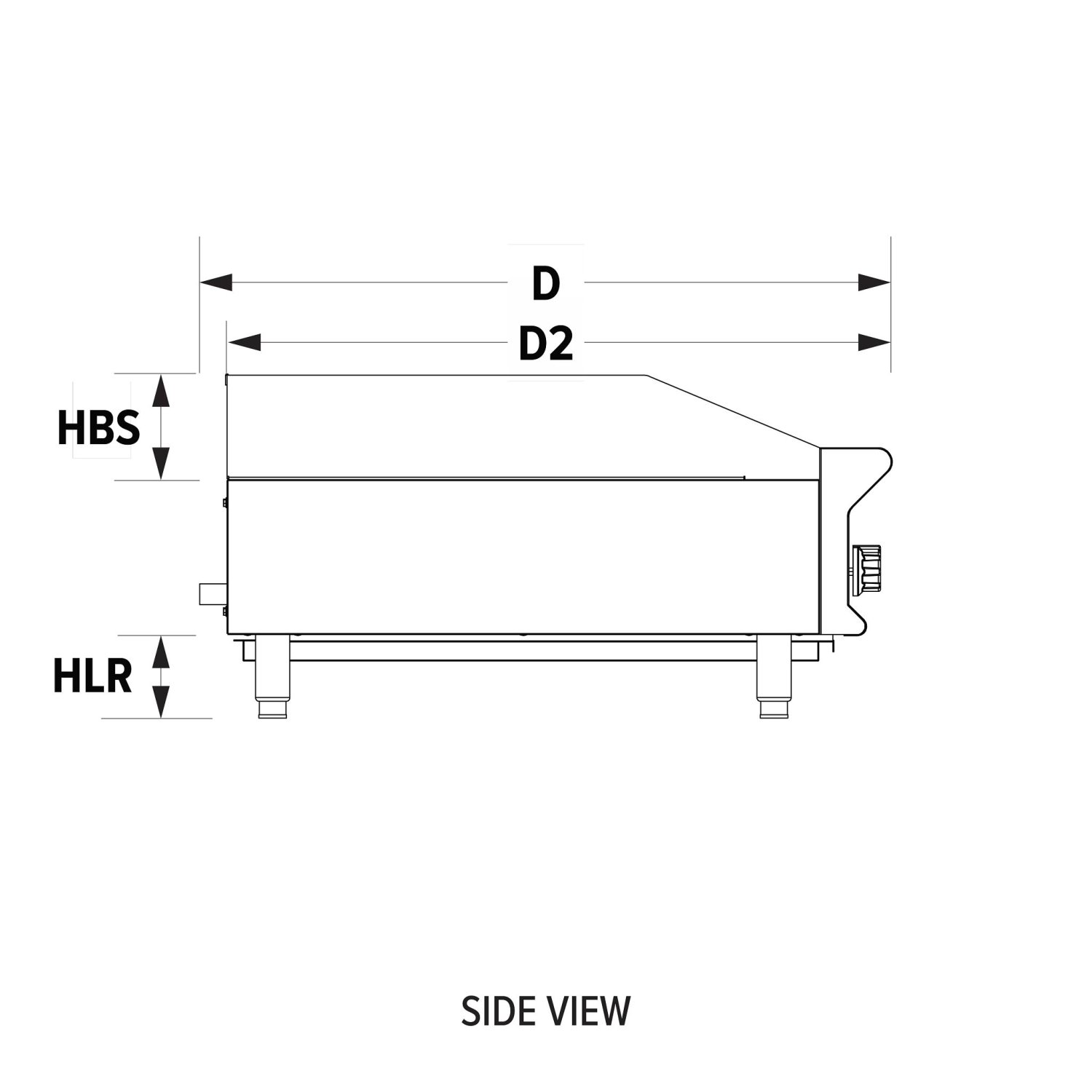

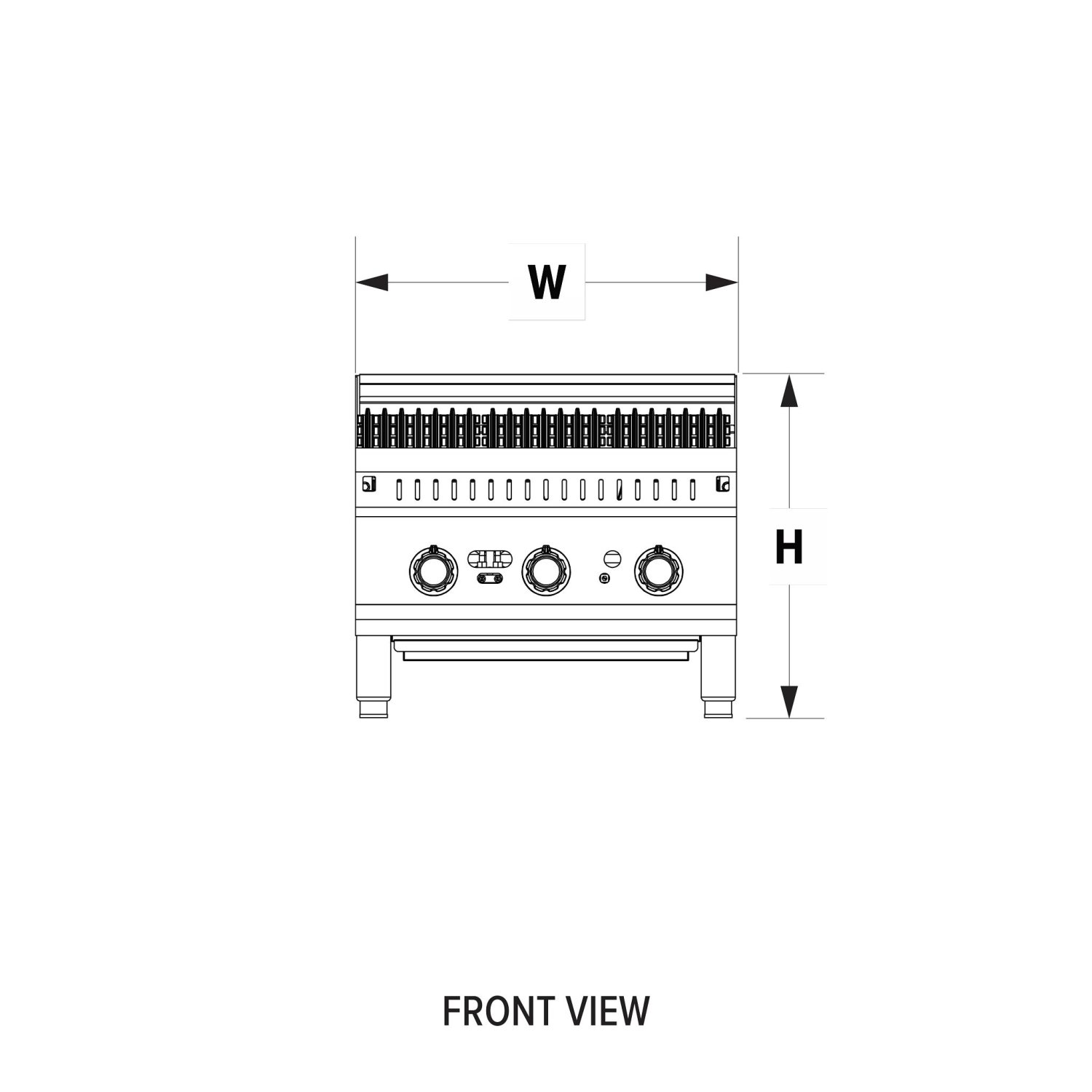

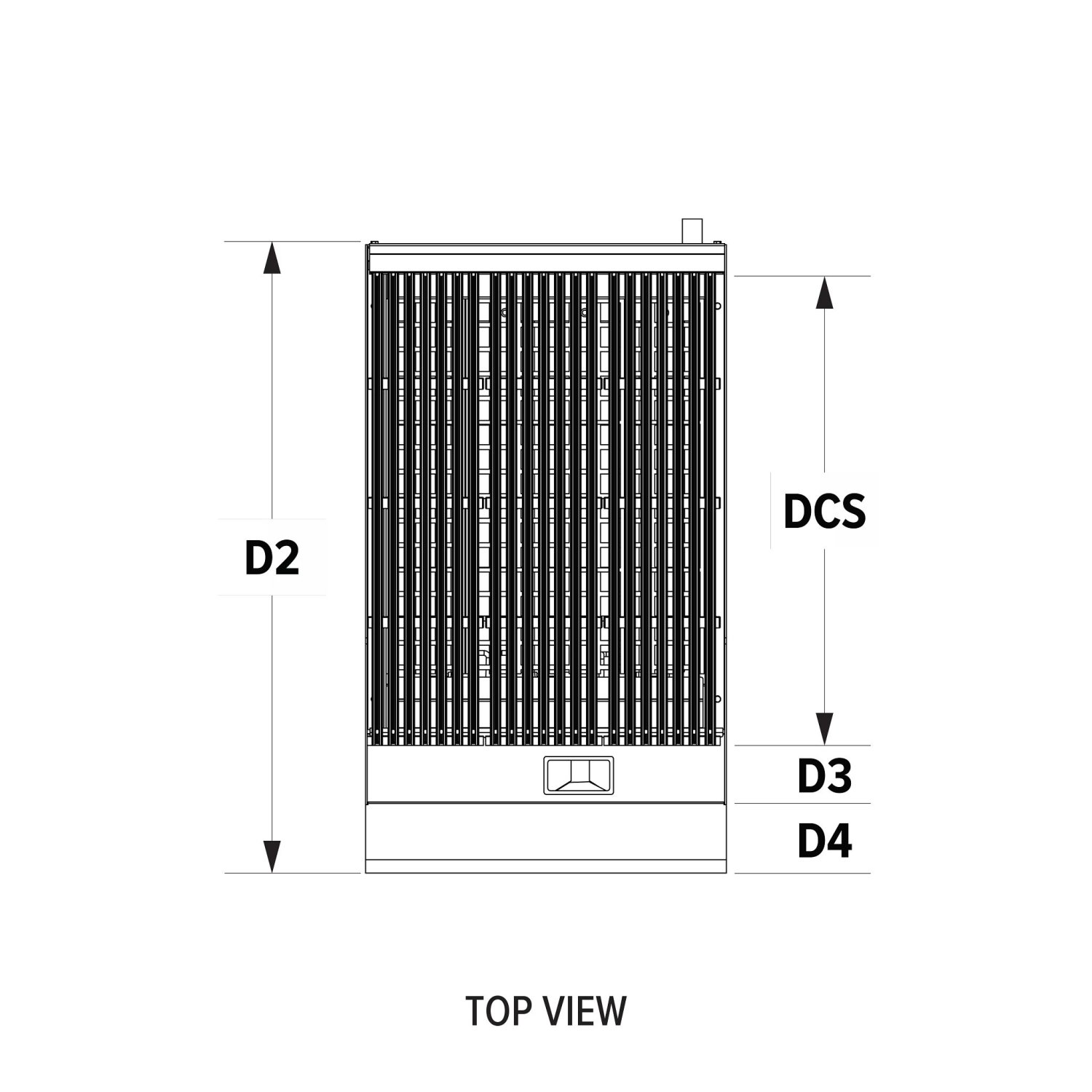

Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 18 |
| (D) Depth (IN) | 32.375 |
| (D2) Secondary Depth (IN) | 31.375 |
| (D3) Additional Depth (IN) | 3.25 |
| (D4) Additional Depth (IN) | 3.25 |
| (H) Height (IN) | 16.375 |
| (HLR) Adjustable Legs (IN) | 4 - 5.5 |
| (WCS) Cooking Surface Width (IN) | 17.687 |
| (DCS) Cooking Surface Depth (IN) | 24 |
| (HBS) Backsplash Height (IN) | 5 |
| (HSS) Sidesplash Height (IN) | 5 |
| (DB) Depth of Body (IN) | 24 |
| (HB) Height of Body (IN) | 7.375 |
| (W) Width (CM) | 61 |
| (D) Depth (CM) | 82.23 |
| (D2) Secondary Depth (CM) | 80 |
| (D3) Additional Depth (CM) | 8.3 |
| (D4) Additional Depth (CM) | 8.3 |
| (H) Height (CM) | 41.59 |
| (HLR) Adjustable Legs (CM) | 10.2 - 14 |
| (WCS) Cooking Surface Width (CM) | 44.92 |
| (DCS) Cooking Surface Depth (CM) | 61 |
| (HBS) Backsplash Height (CM) | 12.7 |
| (HSS) Sidesplash Height (CM) | 12.7 |
| (DB) Depth of Body (CM) | 61 |
| (HB) Height of Body (CM) | 18.7 |
| Size | 18 |
Construction
| Name | Value |
|---|---|
| Number of Controls | 3 |
Additional Specifications
| Name | Value |
|---|---|
| Number of Drip Trays | 1 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Lot Weight (lbs.) | 123.4589 |
Product Accessories
| Name | Item # |
|---|---|
| Lava Rock Kit for the 18-inch heavy duty gas radiant charbroiler | 352574-1 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| HDCB COOKING GRATE | 353444-1 | $180.00 |
| 1.85MM BRASS ORIFICE | 352503-1 | $5.00 |
| CONTROL KNOB LG INSERT | 353373-1 | $9.00 |
| HDCB BURNER RADIANT | 353445-1 | $100.00 |
| MANUAL CONTROL VALVE | 353367-1 | $60.00 |
| REGULATOR 5IN WC | 352509-1 | $180.00 |
| 1.35MM BRASS ORIFICE | 352504-1 | $5.00 |
| HDCB VALVE CONNECTION | 352502-1 | $24.00 |
| LEG, GAS APPLIANCE | 353376-1 | $34.00 |
| DRIP TRAY - 18IN HDCB | 353421-1 | $110.00 |
| DRIP TRAY SUPPORTS - 18IN HDCB | 352518-1 | $90.00 |
| BURNER/PILOT ASSY - 18IN HDCB | 352507-1 | $135.00 |
| FASCIA - 18IN HD CHARBROIL | 353420-1 | $35.00 |
| GRATE SUPPORT - 18IN HDCB | 353423-1 | $90.00 |
| MANIFOLD - 18IN HDCB | 353460-1 | $220.00 |
| BURNER SUPPORT - 18IN HDCB | 353470-1 | $28.00 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
Customer Questions
Be the first to ask a question
