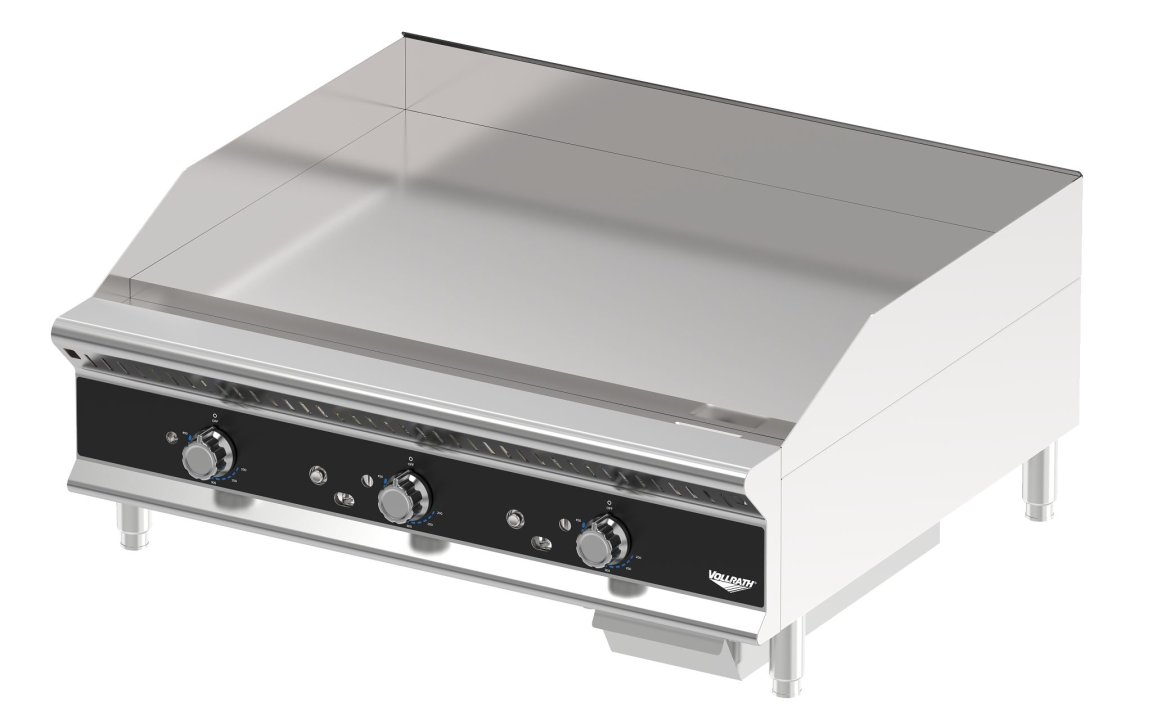

GGHDT-36
36-inch heavy-duty flat-top gas griddle with thermostatic controls
Conforms to NSF/ANSI STD 4
This symbol represents food service equipment that is certified to to use in the production of food intended for human consumption, or the equipment is certified for use in an environment where food intended for human consumption is produced.
Conforms to ANSI STD Z83.11-2016. Certified to CSA STD 1.8-2016
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.
A safe and efficient way to streamline food prep, the new Vollrath® heavy-duty gas griddle elevates your kitchen’s capabilities with increased power and durability. Thicker 1-inch polished surface and U-shaped burners distribute 90,000 BTUs of heat evenly over the entire cooking surface. Thermostatic controls maintain user settings to ensure consistent surface temperature, with metal knobs that will never break or crack. With thick back and sloped sides for less mess, this heavy-duty griddle meets the demands of any kitchen.
- 36-inch griddle’s triple burners increase efficiency
- Thermostatic controls ensure consistent temperature
- Polished 1-inch thick steel griddle maintains even heat
- Welded seams and splash-less design ease cleaning
- Valve-protecting metal knobs are guaranteed for life
- Ships natural-gas-ready; includes propane conversion kit
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419432707 |
Gas Specifications
| Name | Value |
|---|---|
| Output (BTU) | 90000 |
| Number of Burners | 3 |
| Pilot Type | Standing |

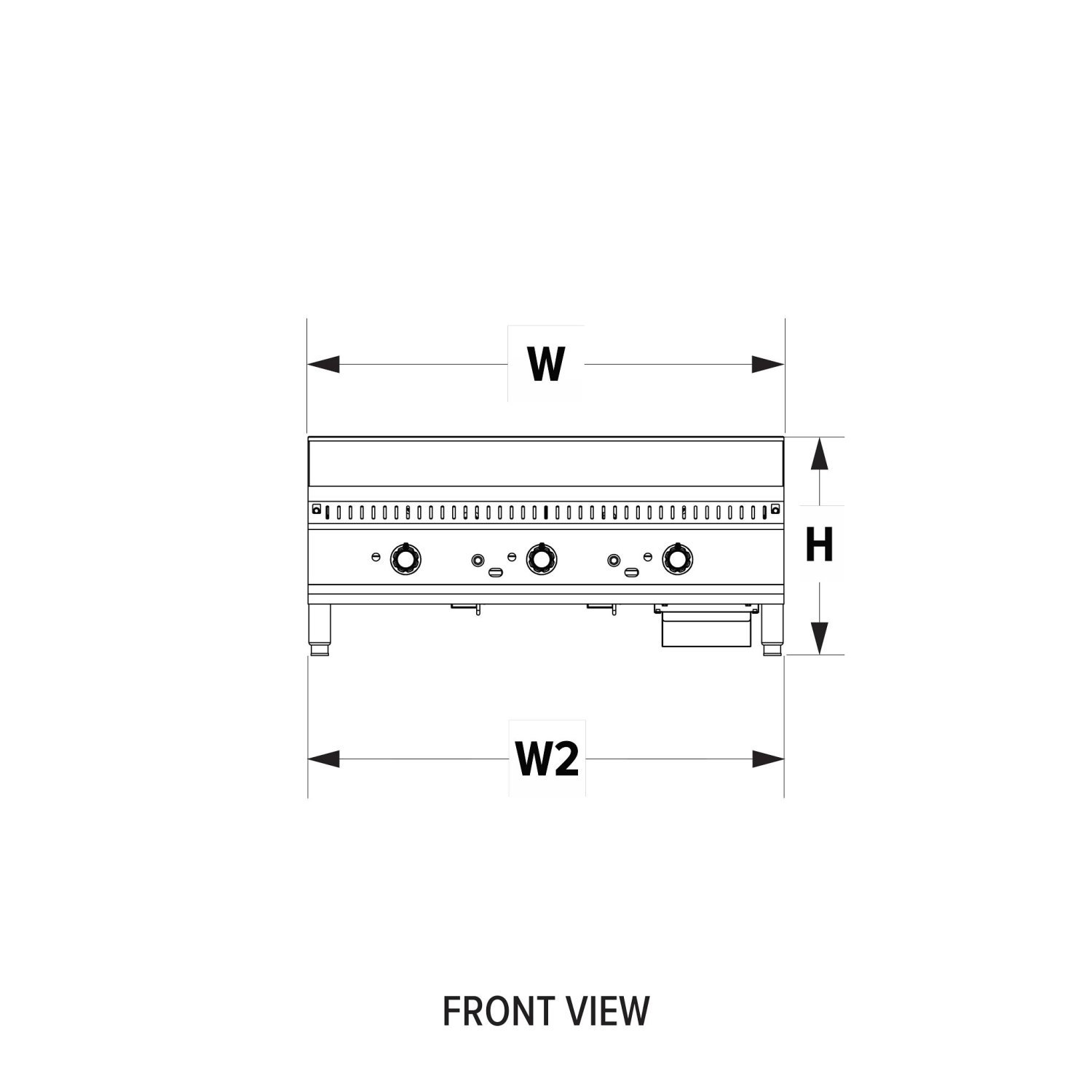

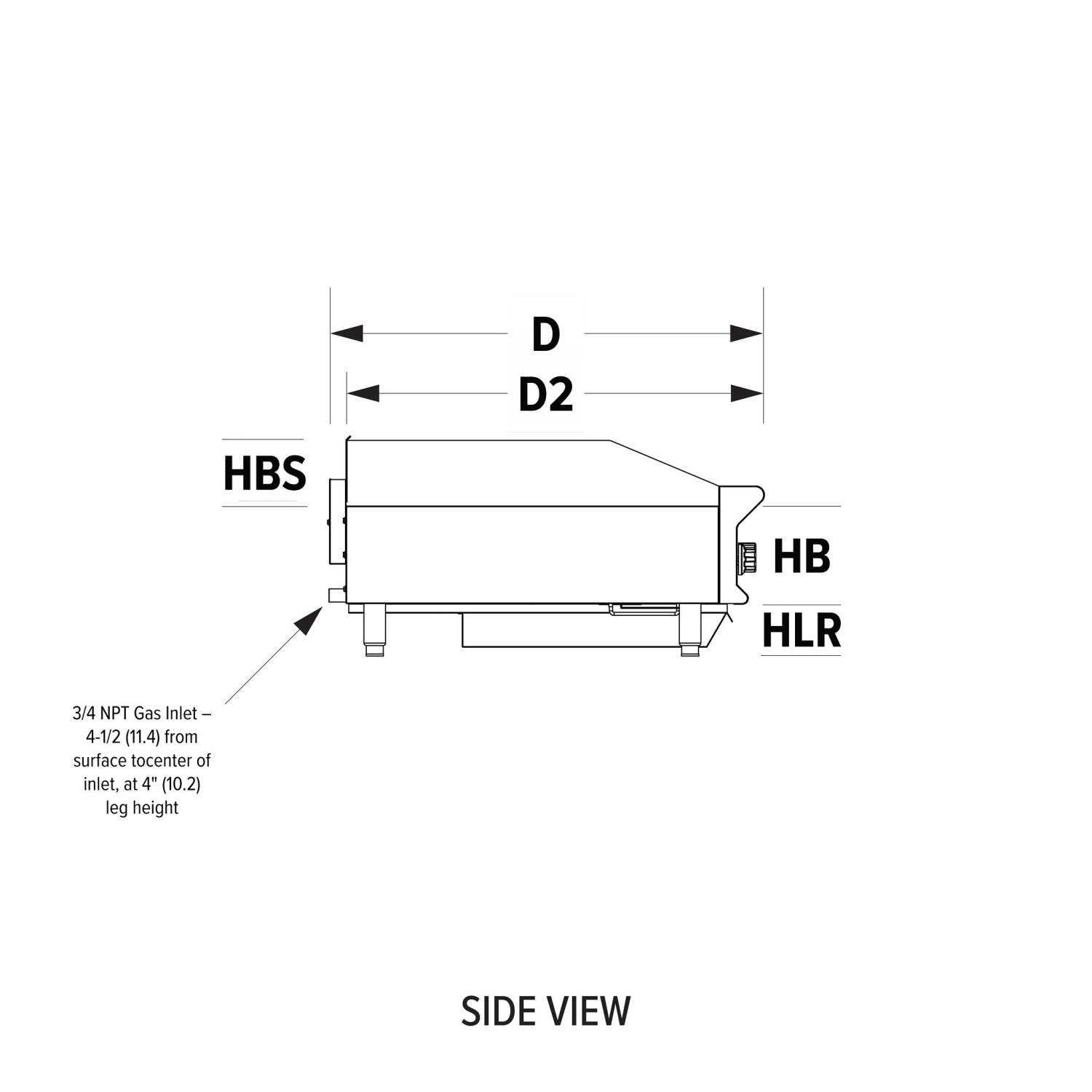

Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 35.9 |
| (D) Depth (IN) | 32.375 |
| (D3) Additional Depth (IN) | 3.25 |
| (D4) Additional Depth (IN) | 3.375 |
| (H) Height (IN) | 16.625 |
| (H2) Secondary Height (IN) | 6.375 |
| (WCS) Cooking Surface Width (IN) | 35.8 |
| (DCS) Cooking Surface Depth (IN) | 24.5 |
| (HBS) Backsplash Height (IN) | 5.375 |
| (HSS) Sidesplash Height (IN) | 5.375 |
| (WB) Width of Body (IN) | 35.8 |
| (DB) Depth of Body (IN) | 24.5 |
| (HB) Height of Body (IN) | 7.25 |
| (W) Width (CM) | 91.1 |
| (D) Depth (CM) | 82.23 |
| (D3) Additional Depth (CM) | 8.3 |
| (D4) Additional Depth (CM) | 8.6 |
| (H) Height (CM) | 42.22 |
| (H2) Secondary Height (CM) | 16.2 |
| (WCS) Cooking Surface Width (CM) | 90.9 |
| (DCS) Cooking Surface Depth (CM) | 62.2 |
| (HBS) Backsplash Height (CM) | 13.7 |
| (HSS) Sidesplash Height (CM) | 13.7 |
| (WB) Width of Body (CM) | 90.9 |
| (DB) Depth of Body (CM) | 62.2 |
| (HB) Height of Body (CM) | 18.42 |
| Size | 36 |
Construction
| Name | Value |
|---|---|
| Number of Controls | 3 |
Additional Specifications
| Name | Value |
|---|---|
| Number of Drip Trays | 1 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Lot Weight (lbs.) | 361.5581 |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| REGULATOR 5IN WC | 352509-1 | $180.00 |
| LEG, GAS APPLIANCE | 353376-1 | $34.00 |
| HDT GRIDDLE SAFETY VALVE | 352500-1 | $500.00 |
| HD VALVE CONNECTORS ASSY | 353477-1 | $155.00 |
| DRIP TRAY SUPPORTS - HD GD | 352506-1 | $36.00 |
| HDT PILOT DIVERTER | 352547-1 | $42.00 |
| DRIP TRAY - GRIDDLE | 353386-1 | $75.00 |
| BURNER SUPPORT - 36IN GRIDDLE | 353397-1 | $38.00 |
| HD CB ORIFICE - NAT GAS | 353440-1 | $5.00 |
| BURNER/PILOT ASSY - HDT GAS GR | 353474-1 | $160.00 |
| HDT GRIDDLE THERMOCOUPLE | 352501-1 | $70.00 |
| MANIFOLD - 36IN HDT GRIDDLE | 352496-1 | $300.00 |
| CONTROL KNOB SM INSERT | 352495-1 | $57.00 |
| HP/T-STAT GD ORIFICE - LP | 353369-1 | $5.00 |
| FASCIA - 36IN HDT GRIDDLE | 353478-1 | $55.00 |
Product Downloads
CAD / REVIT
