Double-well 208- to 240-volt 15-lb medium duty Cayenne® countertop deep fryer
Double-well 208- to 240-volt 15-lb medium duty Cayenne® countertop deep fryer
Double-well 208- to 240-volt 15-lb medium duty Cayenne® countertop deep fryer
Double-well 208- to 240-volt 15-lb medium duty Cayenne® countertop deep fryer
Double-well 208- to 240-volt 15-lb medium duty Cayenne® countertop deep fryer

40710

Discontinued

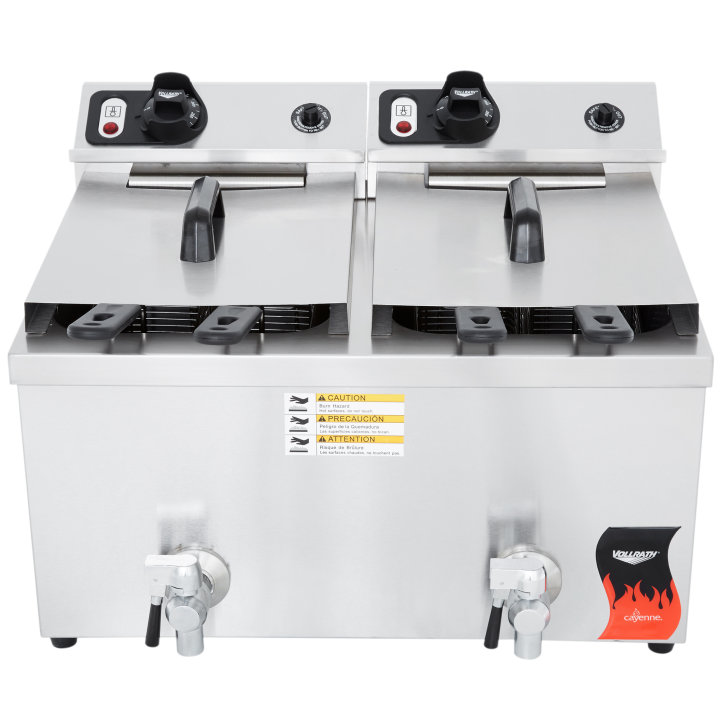

Double-well 208- to 240-volt 15-lb medium duty Cayenne® countertop deep fryer

  • 1 Year Standard
  • Intertek ETL
$1665.66 MSRP Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$2,776.10 List Price List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.

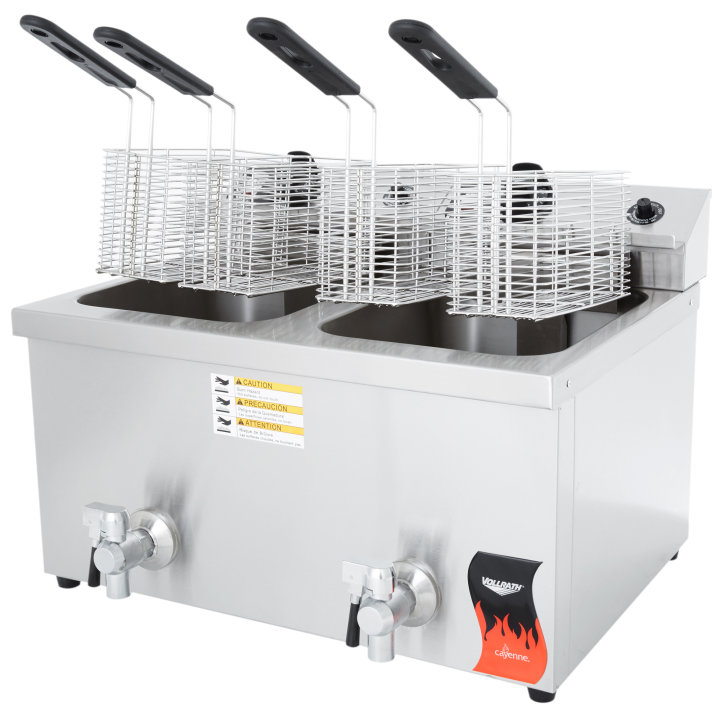

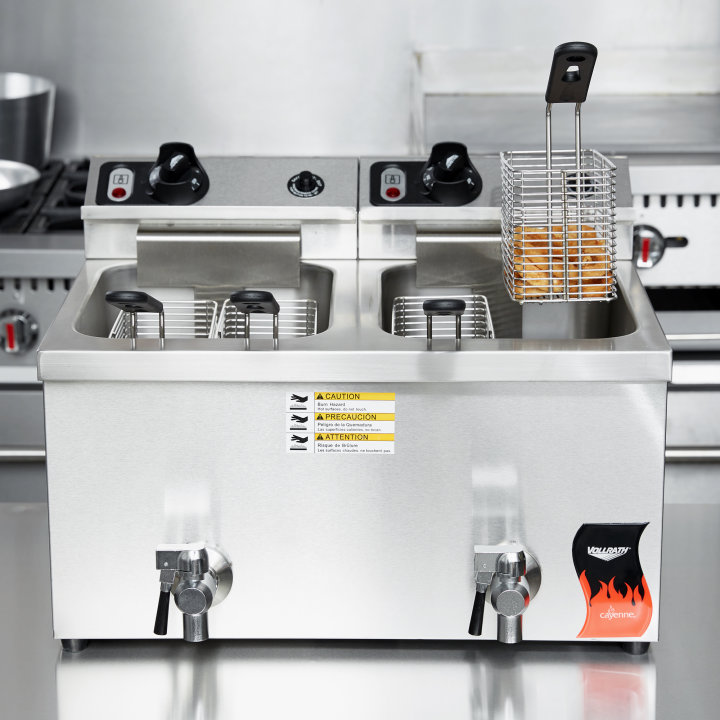

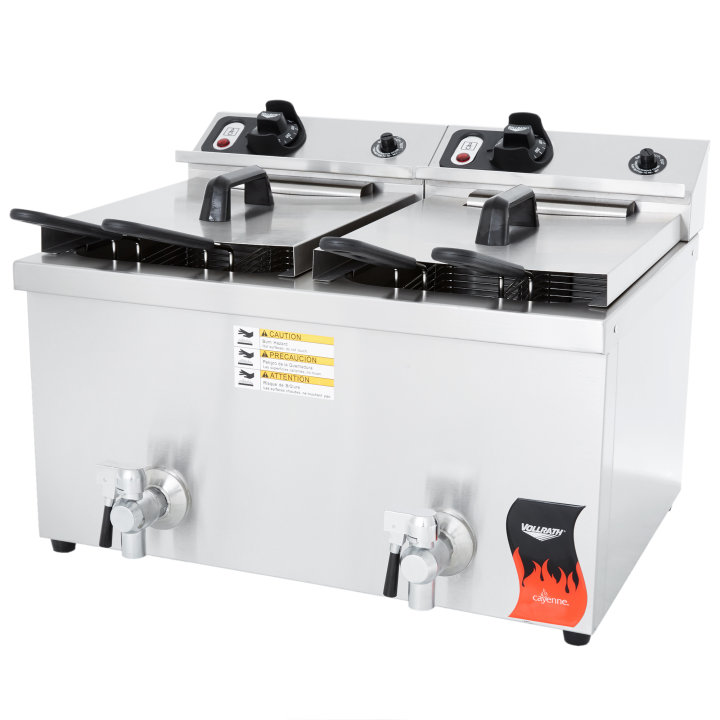

The Vollrath® double-well 15-lb Cayenne countertop deep fryer efficiently prepares a variety of fried foods while saving precious counter space. This fryer is thermostatically controlled to 374°F and has quick heating and recovery times, making this unit suitable even for frozen foods. A designated cold zone keeps oil fresh longer, improving quality and taste. This double-well unit increases volume and variety while keeping food and flavors separate. Two nickel-plated steel fryer baskets have Kool-Touch® handles for your safety and comfort. Nonskid rubber feet prevent the unit from moving during use and maintain stability. Thanks to its compact size, this unit fits nicely on any countertop.

  • Quickly fry chicken, french fries, seafood, and more
  • Fully welded oil tank and front-mounted drainage valve make cleaning easy and efficient

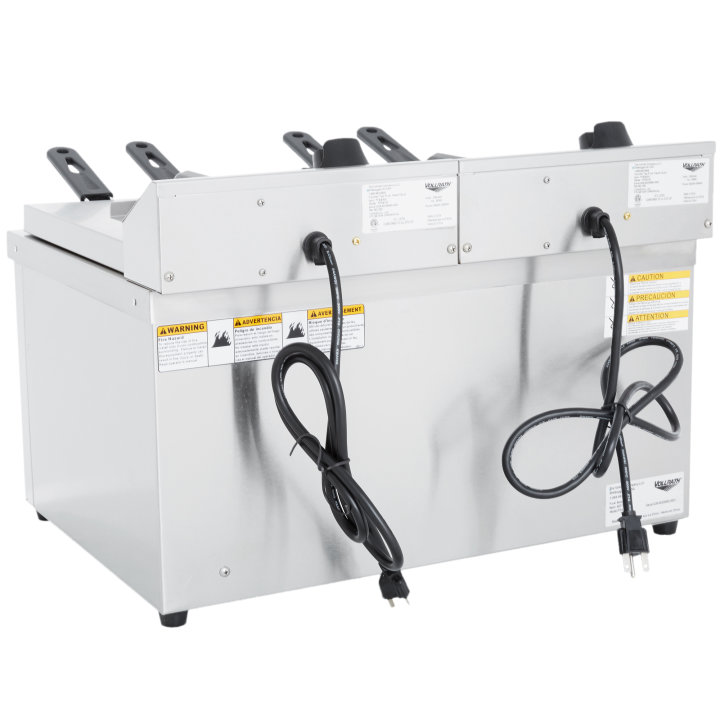

  • Double-well unit features two separate power cords and requires two receptacles
  • Microswitch safely shuts off unit when element box is removed
  • Automatic shutoff feature at 446°F maintains safety of operation
  • Thermostatic controls maintain a temperature of 374°F for more accurate heating
  • Two 4- x 10- x 4-inch fryer baskets fit a variety of products
Double-well 208- to 240-volt 15-lb medium duty Cayenne® countertop deep fryer Inspiration

Product Specifications

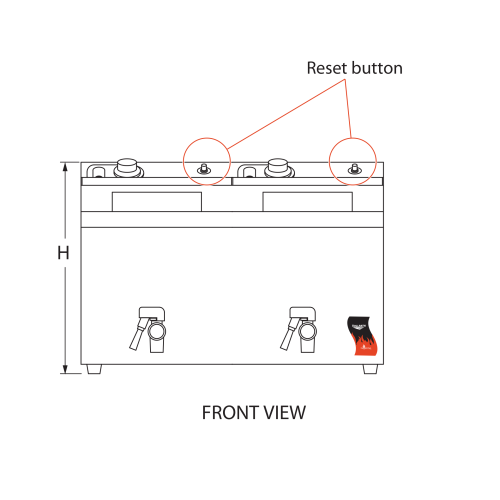

Engineering front view

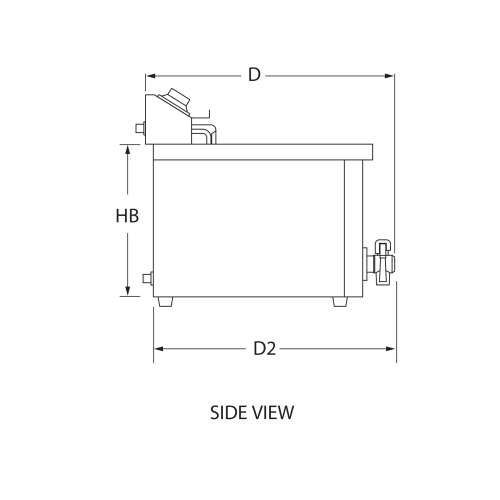

Engineering side view

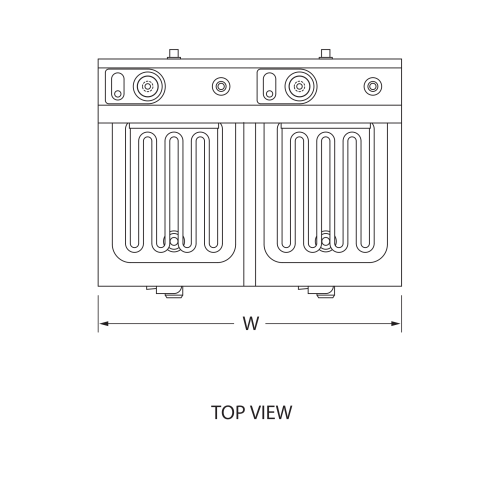

Engineering top view
Model Information
Name Value
Model FFA8130
UPC 029419718917
Unit Dimensions
Name Value
Overall Dimensions (IN) 23 x 19.75 x 16
(W) Width (IN) 23
(D) Depth (IN) 19.75
(D2) Secondary Depth (IN) 18.5
(H) Height (IN) 16
(HB) Height of Body (IN) 11.5
Overall Dimensions (CM) 59.4 x 50.2 x 40.6
(W) Width (CM) 59.4
(D) Depth (CM) 50.2
(D2) Secondary Depth (CM) 47
(H) Height (CM) 40.6
(HB) Height of Body (CM) 29.2
Size 15
Electrical
Name Value
Amps 12.6 - 14.6 per well
Cord Length (IN) 60
Cord Length (CM) 150
Plug NEMA 6-15P
Voltage 208-240
Watts 2630-3500 per well
Weight
Name Value
Weight (LB) 46.4
Weight (KG) 21.05
Construction
Name Value
Construction Material Stainless Steel
Construction Material 2 Electrical Components
Countertop or Drop-In Countertop
Number of Wells 2
Case Lot Measurement
Name Value
Case Lot 1
Case Width 22.25
Case Height 19
Case Length 25.5
Case Lot Cube (ft.) 6.24
Case Lot Weight (lbs.) 46.4
Product Accessories
Name Item #
4-inch-wide fryer basket 40711
8-inch-wide fryer basket 40712
Large fryer basket night cover for standard-duty Cayenne® countertop deep fryer 40713
Small fryer basket night cover for standard-duty Cayenne® countertop deep fryer 40714
Product Parts
Name Part # Price
ELEMENT FFA8115/FFA8130 (#1) 3 XFFA8001 $149.10
MICRO SWITCH FFA5110/8115/8130 XFFA5010 $28.70
POWERCORD 220V (NEMA6-15P) XAA0006 $40.40
CONTROL PANEL FASCIA - BLACK XAA0009 $28.10
PARTICLE SIEVE XFFA0014 $24.30
NIGHT COVER FFA80115/FFA8130 XFFA8027 $112.90
PILOT LIGHT 220V (RED) XAA0002 $16.00
THERMOSTAT XFFA8103 $106.00
SAFETY CUT OUT PLASTIC CAP FF XFFA0013 $6.90
FAUCET FIBRE WASHER FFA8115/FF XFFA8013 $5.70
FAUCET O RING FFA8115/FFA8130 XFFA8015 $8.60
CABLE RESTRAINT (FMA SKA FFA) XAA0012 $9.70
RELAY SWITCH FFA8115/FFA8130 # XFFA8030 $134.20
SAFETY THERMOSTAT FFA8115/FFA8 XFFA8008 $48.50
RUBBER FOOT FFA8115/FFA8130 ( XFFA8011 $8.90
VOLLRATH CONTROL KNOB FFA7110/ XFFA0004 $15.80
DRAIN VALVE FFA8115/FFA8130 (# XFFA8002 $162.50
DRAIN VALVE HANDLE FFA8115/FFA XFFA8102 $53.70
