MPI4-1800

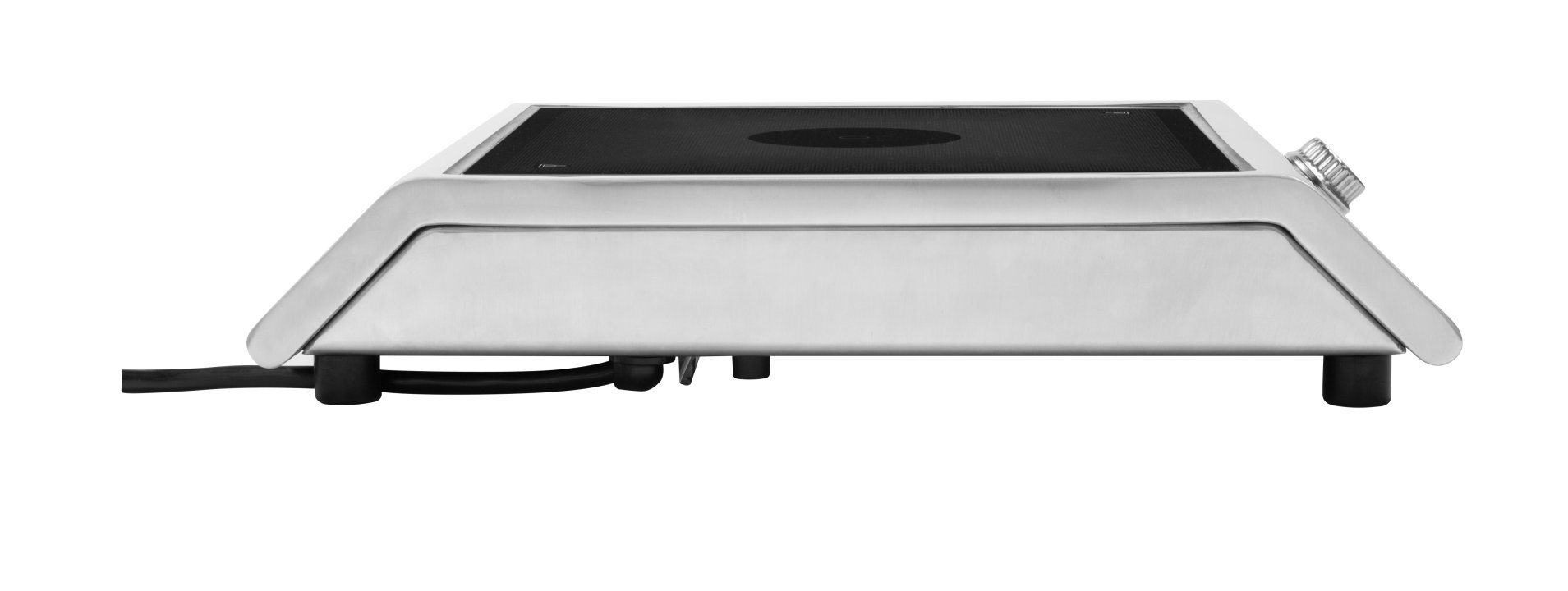

1800-watt medium power induction range with control knob, stainless case and glass top
This device complies with Part 18 of the FCC Rules
This symbol represents products that are certified to meet safe levels of radiofrequency radiation based on FCC regulations.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
Certified to NSF4
This symbol represents products that are certified to meet specific environmental and public health standards. The UL EPH Mark is recognized and accepted as a trusted source for assessing the sanitary design, construction and performance of commercial food equipment. If it shows the word “Classified” above the UL mark, then the product also complies with ANSI/NSF regulations.
At Vollrath, the best keep getting better. Our next generation induction ranges improve upon the features you have come to rely on — powerful heating, temperature control, efficiency, reliability and usability. Redesigned inside and out. Industry-setting performance with patented power control, precise temperature and power level. Easy to use touch screen and a patented, sleek new design. Use for omelets, sautéing, searing, warming and holding applications. Designed to work with a wide range of induction cookware, but optimized to perform with Vollrath induction-ready cookware. See the Operator’s Manual for details.
- Expanded magnetic field emulates gas to allow uninterrupted heat while lifting or tilting pan to sauté or flip.
- Patented circuitry delivers steady heat. No power cycling.
- Control knob is fast and precise. A quick spin brings food to a boil or reduces it to a simmer; or dial in a precise temperature or power level.
- Power level control offers responsive gas flame-like control, in increments from 1 to 100% of watts. Use for fast, powerful heating.
- Temperature control is the most accurate in the industry, providing steady, controlled heating in single degree increments in °F (80-450°) and °C (27-232°). Use for more precise pan temperature.
- Time to boil is 20% faster than electric hot plate ranges, and up to 13% faster than competitive ranges.
- 90% efficiency rating is the highest industry which means more heat is transmitted to the pan and less to the kitchen.
- Touch screen control panel.
- Timer with audible alarm. Heating stops when time expires.
- Smarter, faster pan detection technology delivers an uninterrupted cooking experience when lifting a pan to flip, sauté or add ingredients.
- Stainless steel case.
- Glass cooking surface.
- Non-slip, durable feet.
The responsiveness, heat control, and real world feel of Vollrath’s MP series induction burner allows me to cook intuitively and naturally, not like other induction burners. During Truffle Shuffle cooking classes, it’s important for me to teach with confidence and the Vollrath MP-series induction burners allow me to cook anything with the certainty that I would have on a custom-built, professional range top.
Tyler Vorce Founder and CCO - Truffle Shuffle
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | MPI4 |
| UPC | 671080870878 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 12.75 x 17.812 x 3.5 |
| (W) Width (IN) | 12.75 |
| (D) Depth (IN) | 17.81 |
| (H) Height (IN) | 3.5 |
| (MPD) Maximum Pan Bottom Diameter (IN) | 12 |
| (WL) Width between legs | 11.518 |
| (DL) Depth between legs | 16 |
| Overall Dimensions (CM) | 32.4 x 45.2 x 9 |
| (W) Width (CM) | 32.4 |
| (D) Depth (CM) | 45.2 |
| (H) Height (CM) | 9 |
| (MPD) Maximum Pan Bottom Diameter (CM) | 30.5 |
| (WL) Width between legs (CM) | 29.2 |
| (DL) Depth between legs (CM) | 40.8 |
Electrical
| Name | Value |
|---|---|
| Amps | 15 |
| Hz | 50/60 |
| Plug | 5-15P |
| Domestic / International | USA |
| Voltage | 120 |
| Watts | 1800 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Countertop or Drop-In | Countertop |
| Performance | Medium Power |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 15.75 |
| Case Height | 6 |
| Case Length | 21.5 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| FUSE HLDR KNOB SCREWDRIVER SLT | 351769-101-1 | $41.10 |
| TOP ASSY, MPI4-1800, SERVICE | 351773-1 | $335.20 |
| KNOB, MPI4 | 351726-1 | $6.90 |
| Kit, Foot, 1.00" OD, 20Mm LG | 351775-1 | $6.70 |
| FUSE, 20 AMP | 351770-1 | $12.40 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
Customer Questions
Be the first to ask a question
