912HIMC

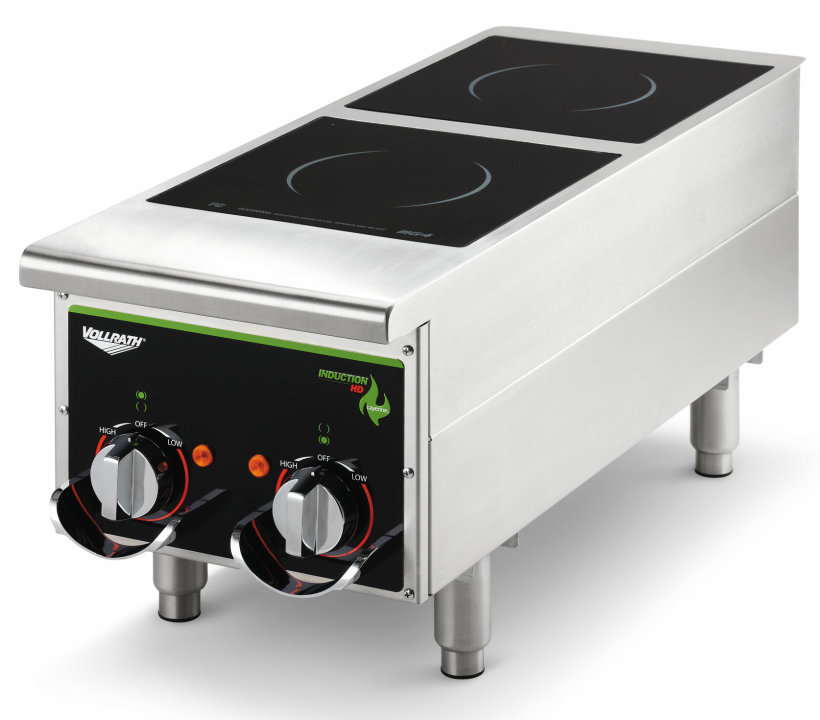

208- to 240-volt heavy-duty Cayenne® front-to-back dual-hob induction range with manual controls

This device complies with Part 18 of the FCC Rules
This symbol represents products that are certified to meet safe levels of radiofrequency radiation based on FCC regulations.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

$4130.34 MSRP

$6,883.90 List Price

The Vollrath® heavy-duty Cayenne dual-hob induction range is designed specifically for heavy-duty use in commercial kitchens. This induction range reduces energy costs with its extremely high efficiency, and the manual controls ensure accurate cooking temperatures. Designed for both low- and high- heat cooking, this powerful unit provides high-quality results. Adjustable legs allow for manual leveling, while the rubber feet prevent movement on any countertop. The flat surface is easy to clean, saving you valuable time.

Designed for both low-temperature cooking of sauces, milks, and chocolates, and fast, high-temperature cooking of entrees and sides
Durable stainless steel body is built to last
Manual controls ensure accurate heating
Induction range has no open flame, increasing cooking safety
Also available with digital controls
Works with pans with a bottom diameter of 10¼ inches or less

Product Specifications

Model Information

Name	Value
UPC	029419852062

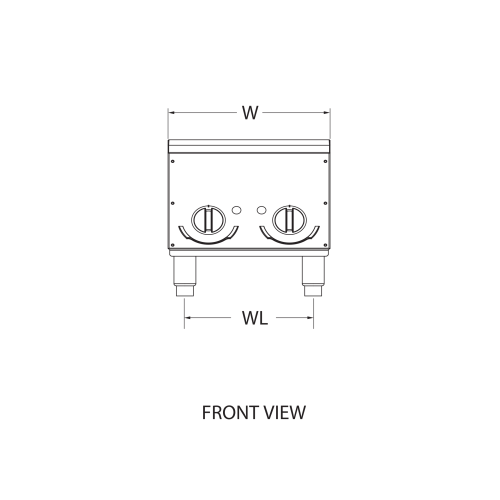

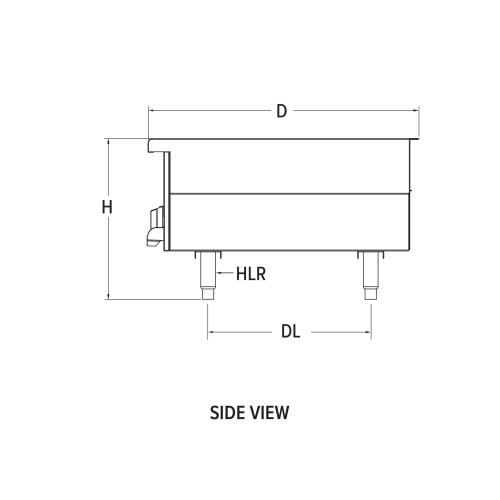

Unit Dimensions

Name	Value
Overall Dimensions (IN)	12 x 30 x 13.625
(W) Width (IN)	12
(D) Depth (IN)	30
(H) Height (IN)	13.62
(WL) Width between legs	9.5
(DL) Depth between legs	18
(HLR) Adjustable Legs (IN)	4 - 5
Overall Dimensions (CM)	30.5 x 76.2 x 44.7
(W) Width (CM)	30.5
(D) Depth (CM)	76.2
(H) Height (CM)	34.6
(WL) Width between legs (CM)	24.1
(DL) Depth between legs (CM)	45.7
(HLR) Adjustable Legs (CM)	10.2 - 12.7

Electrical

Name	Value
Amps	24
Hz	50/60
kW	2.5 - 2.9 per hob
Plug	NEMA 6-30P
Voltage	208-240
Watts	2500-2900 per hob

Construction

Name	Value
Countertop or Drop-In	Countertop

Case Lot Measurement

Name	Value
Case Lot	1
Case Width	16.25
Case Height	14.75
Case Length	33
Case Lot Cube (ft.)	4.39
Case Lot Weight (lbs.)	60.25

Product Parts

Name	Part #	Price
KNOB GUARD	2351608-1	$22.60
Heavy Duty 4" Leg	2351601-1	$24.10
FRONT PANEL ASSY-MANUAL 2-HOB	4161201-2	$309.50
912/924 EMI & POWER BOARD KIT	352365-1	$803.30
TOP UNIT ASSEMBLY	4161105-2	$1,798.20
TOP GLASS ASSEMBLY, 2 HOB	352366-2	$349.60
DC FANS	352367-2	$36.50
KNOB AND ADAPTOR	352362-1	$31.10
