924HIDC

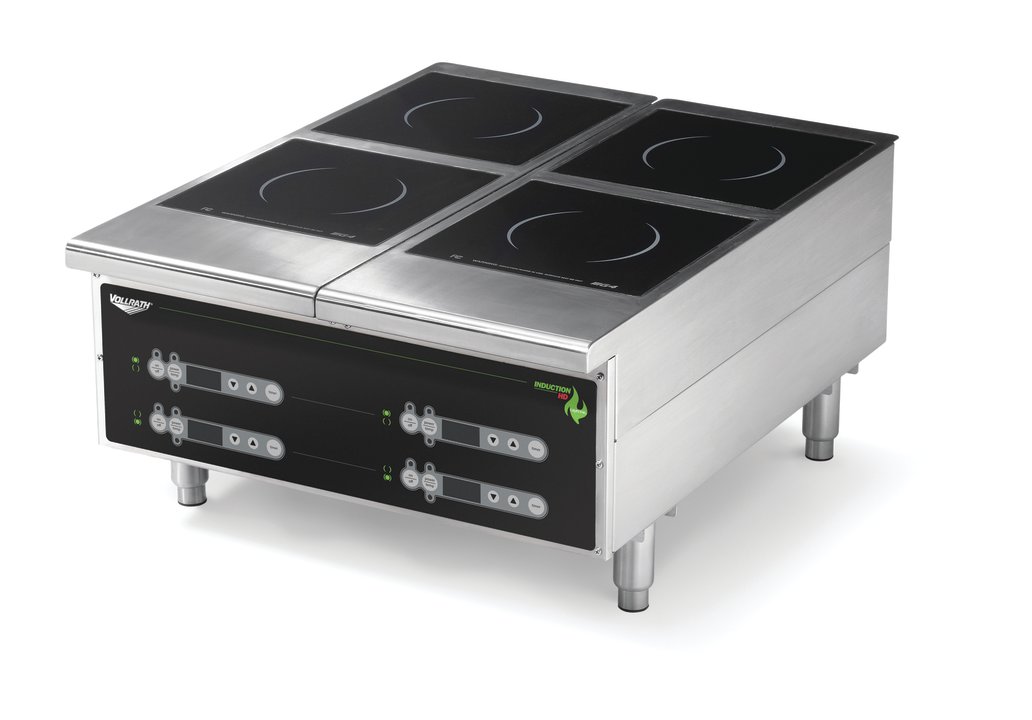

208- to 240-volt heavy-duty Cayenne® four-hob induction range with digital controls

This device complies with Part 18 of the FCC Rules
This symbol represents products that are certified to meet safe levels of radiofrequency radiation based on FCC regulations.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

$7316.22 MSRP

$12,193.70 List Price

The Vollrath® heavy-duty Cayenne dual-hob induction range is designed specifically for heavy-duty use in commercial kitchens. This induction range reduces energy costs with its extremely high efficiency, and the simple digital controls ensure precise cooking temperatures. Designed for both low- and high- heat cooking, this powerful unit provides high-quality results. Adjustable legs allow for manual leveling, while the rubber feet prevent movement on any countertop. The flat surface is easy to clean, saving you valuable time.

Designed for both low-temperature cooking of sauces, milks, and chocolates, and fast, high-temperature cooking of entrees and sides
Durable stainless steel body is built to last
Digital controls ensure precise heating
Induction range has no open flame, increasing cooking safety
Also available with manual controls
Works with pans with a bottom diameter of 10¼ inches or less

Product Specifications

Model Information

Name	Value
UPC	029419852130

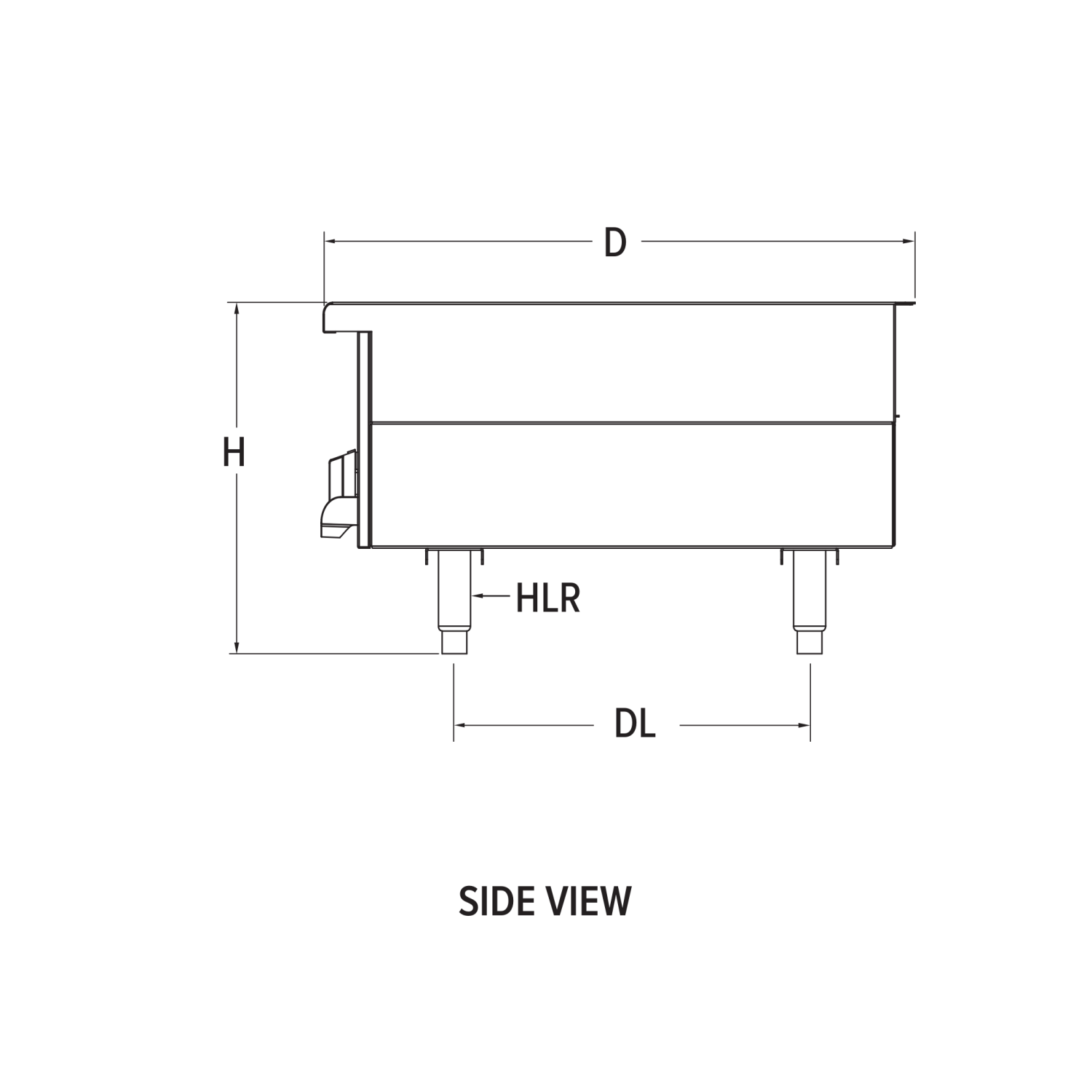

Unit Dimensions

Name	Value
Overall Dimensions (IN)	24 x 30 x 17.625
(W) Width (IN)	24
(D) Depth (IN)	30
(H) Height (IN)	13.62
(WL) Width between legs	21.5
(DL) Depth between legs	18
(HLR) Adjustable Legs (IN)	4 - 5
Overall Dimensions (CM)	61 x 76.2 x 44.7
(W) Width (CM)	61
(D) Depth (CM)	76.2
(H) Height (CM)	34.6
(WL) Width between legs (CM)	54.6
(DL) Depth between legs (CM)	45.7
(HLR) Adjustable Legs (CM)	10.2 - 12.7

Electrical

Name	Value
Amps	2 x 24
Hz	50/60
kW	2.5 - 2.9 per hob
Plug	NEMA 6-30P
Voltage	208-240
Watts	2500-2900 per hob

Construction

Name	Value
Countertop or Drop-In	Countertop

Case Lot Measurement

Name	Value
Case Lot	1
Case Width	29
Case Height	17
Case Length	24
Case Lot Cube (ft.)	9.7
Case Lot Weight (lbs.)	120.0

Product Accessories

Name	Item #
24-inch heavy-duty mobile equipment stand	4087924

Product Parts

Name	Part #	Price
CTRL PANEL OVERLAY 4-HOB DELUX	23577-1	$95.70
Heavy Duty 4" Leg	2351601-1	$24.10
912/924 EMI & POWER BOARD KIT	352365-1	$803.30
FRONT PANEL ASSY-AUTO, 4-HOB	4161402-2	$367.70
TOP UNIT ASSEMBLY	4161105-2	$1,798.20
TOP GLASS ASSEMBLY, 2 HOB	352366-2	$349.60
DC FANS	352367-2	$36.50
