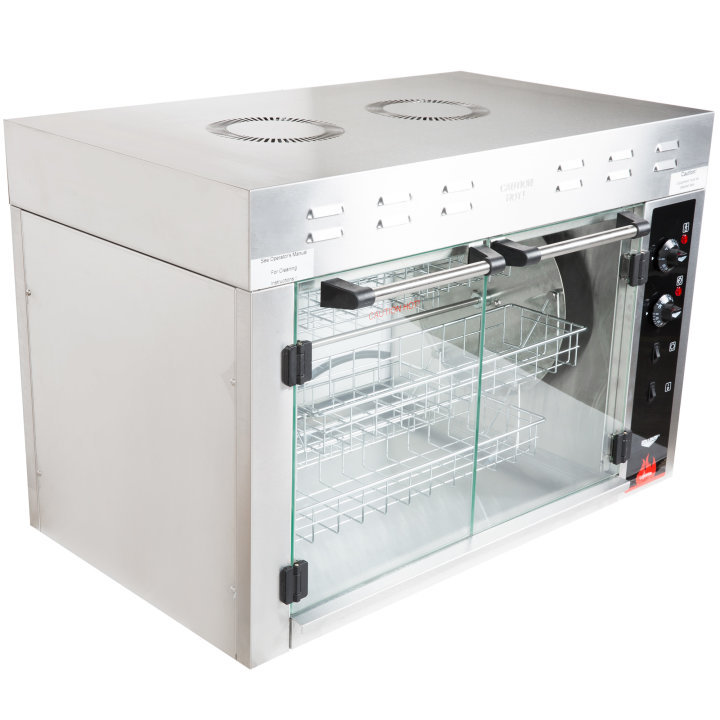

Discontinued15-bird 220-volt Cayenne® countertop chicken rotisserie oven
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.
The Vollrath® Cayenne chicken rotisserie oven is ideal for any convenience store, deli or supermarket. The glass front and back allow exceptional product visibility. This countertop oven can prepare up to 15 chickens at once and provides consistent results. A special circulation fan evenly distributes heat for better cooking and browning. The wire baskets are easily loaded and can be used for a variety of products, unlike traditional spit-style ovens. The removable drip tray makes cleaning easy and efficient, while the stainless steel exterior is a sleek addition to your countertop.
- Ideal for chickens, ribs, roasts, vegetables and more
- Chrome-plated wire baskets are extremely durable, easy to clean, and provide more versatility than spit-style ovens
- Thermostatically controlled for accurate, even heating
- Removable full-size drip tray makes cleaning simple and efficient
- Easily fits up to 15 birds at one time
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | CGA8016 |
| UPC | 029419723812 |

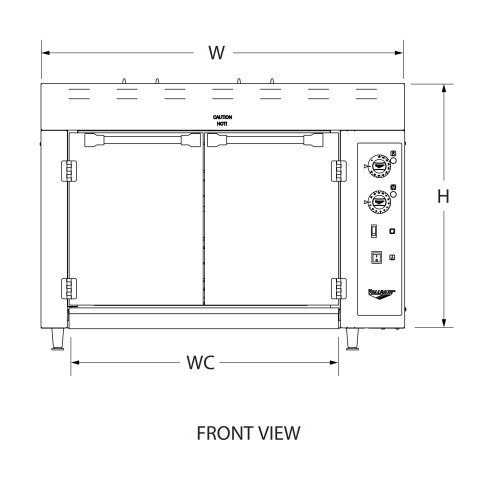

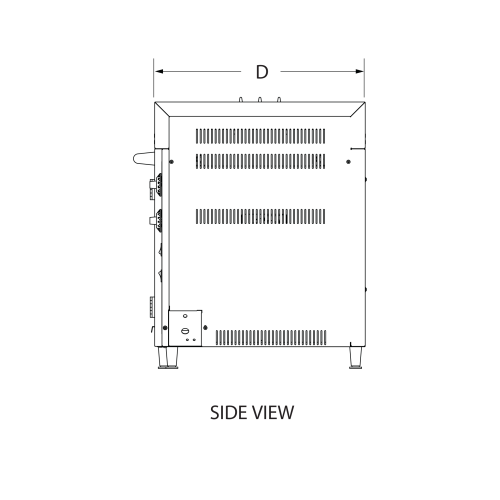

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 37 x 21.625 x 26.125 |
| (W) Width (IN) | 37 |
| (D) Depth (IN) | 21.62 |
| (H) Height (IN) | 26.12 |
| (WC) Cooking Chamber Width (IN) | 28 |
| (DC) Cooking Chamber Depth (IN) | 21.437 |
| (HC) Cooking Chamber Height (IN) | 19.562 |
| Overall Dimensions (CM) | 94 x 55 x 66.3 |
| (W) Width (CM) | 94 |
| (D) Depth (CM) | 55 |
| (H) Height (CM) | 66.3 |
| (WC) Cooking Chamber Width (CM) | 71.1 |
| (DC) Cooking Chamber Depth (CM) | 54.5 |
| (HC) Cooking Chamber Height (CM) | 49.7 |
| Size | 15 |
Electrical
| Name | Value |
|---|---|
| Amps | 22 |
| Cord Length (IN) | 48 |
| Cord Length (CM) | 120 |
| Plug | NEMA 6-30P |
| Voltage | 220 |
| Watts | 5000 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 27.5 |
| Case Height | 29.25 |
| Case Length | 42.75 |
| Case Lot Cube (ft.) | 19.9 |
| Case Lot Weight (lbs.) | 150.0 |
Product Accessories
| Name | Item # |
|---|---|
| 48-inch equipment stand | 40742 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| MOTOR COUPLING CGA8008/8016 (# | XCGA0027 | $24.00 |
| VOLLRATH TIMER KNOB COA7002/80 | XCOA1008 | $16.27 |
| CABLE RESTRAINT COA7001/7002/8 | XCOA1013 | $7.62 |
| FAN & MOTOR COA8004 (#21) 220 | XCOA1021 | $413.85 |
| DRIP TRAY FOR 40841 | XCGA0006 | $500.27 |
| DOOR HANDLE NODE POA7002/8002 | XPOA0003 | $14.94 |
| END PLATE FLANGE CGA8008/8016 | XCGA0005 | $77.66 |
| DOOR MAGNET CGA8008/8016 (#18) | XCGA0016 | $25.85 |
| GEARED MOTOR CGA8016 | XCGA0034 | $796.71 |
| DOOR HINGE CGA8008/8016 (#10) | XCGA0010 | $25.03 |
| MAIN SHAFT CGA8016 | XCGA0032 | $111.76 |
| LIGHT FIXTURE WITH BULB | XCGA0040 | $204.87 |
| CONNECTOR BLOCK FTA8036/COA800 | XFTA0002 | $24.82 |
| ELEMENT 220V 2500W CGA8016 | XCGA0031 | $183.13 |
| THERMOSTAT COA7001(#12)/7002(# | XCOA1002 | $89.51 |
| CONNECTOR BLOCK TSA(ALL) SAA(A | XTSA0005 | $20.60 |
| CAROUSEL END PLATE | XCGA0012 | $276.14 |
| CHICKEN GRILLER BASKET CGA8016 | XCGA0030 | $71.69 |
| TIMER COA7001(#20)/7002(#27)/8 | XCOA1003 | $219.80 |
| VOLLRATH CONTROL KNOB COA7002/ | XCOA1009 | $16.48 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
