40756

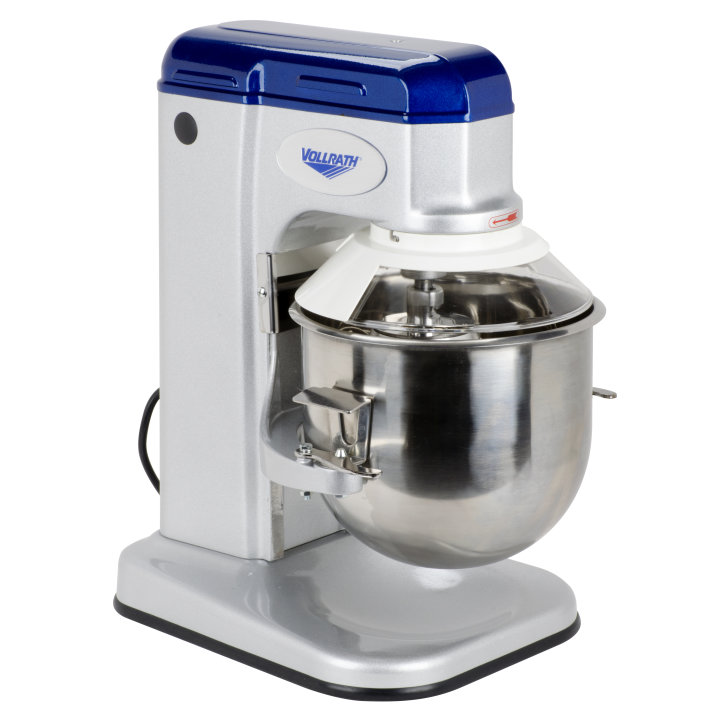

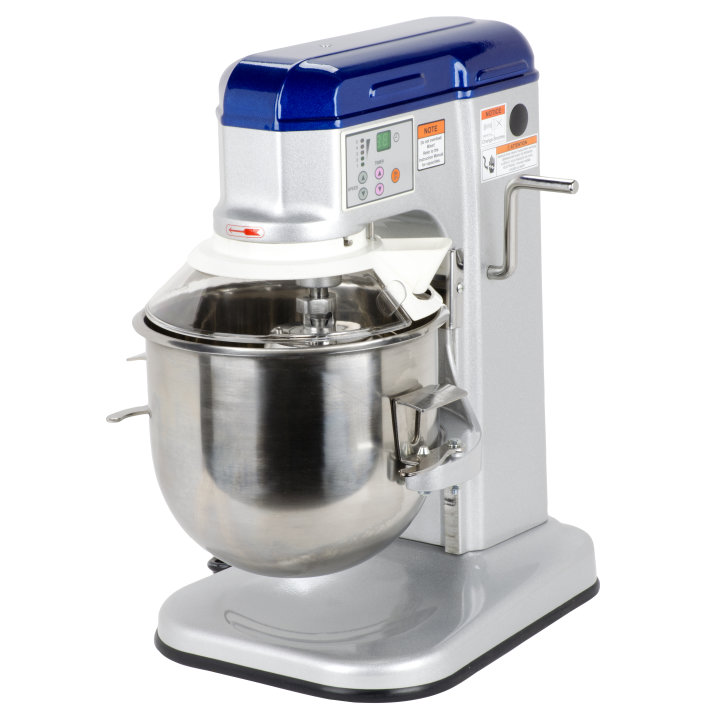

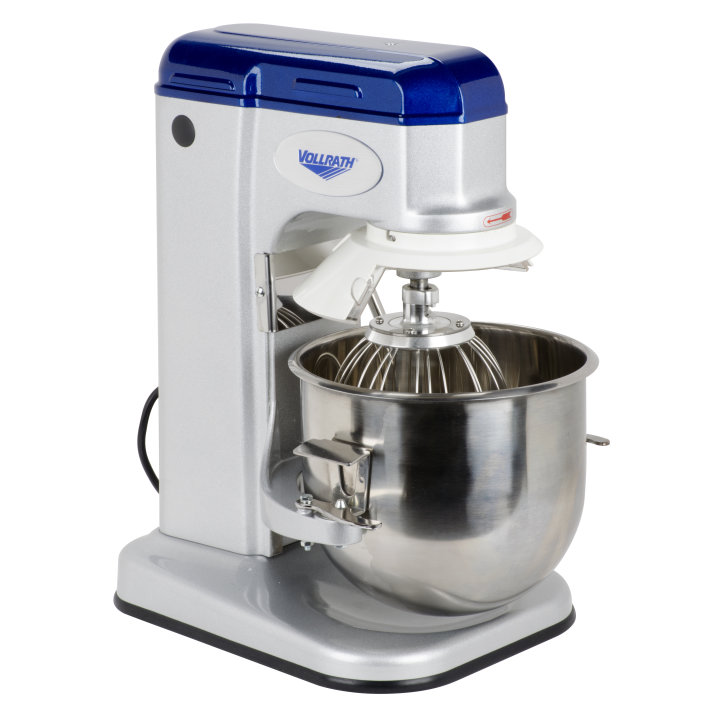

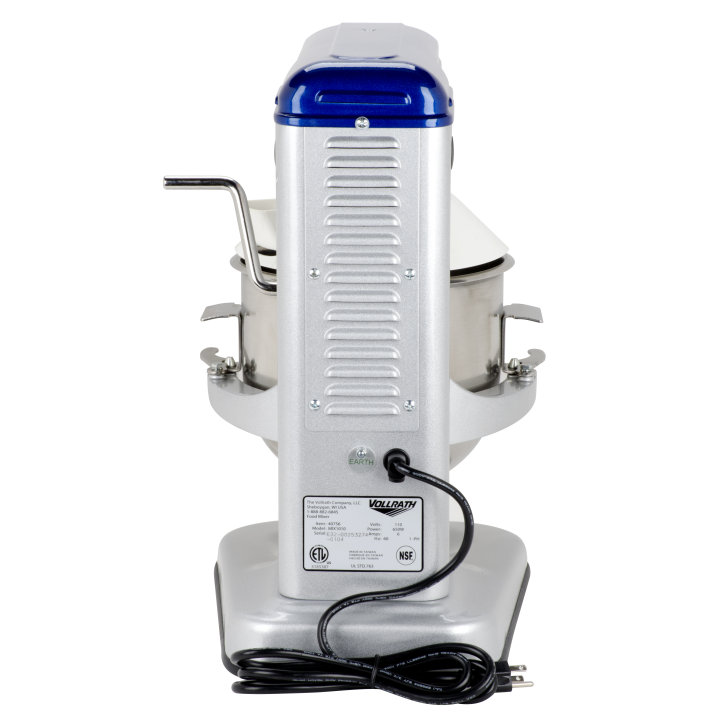

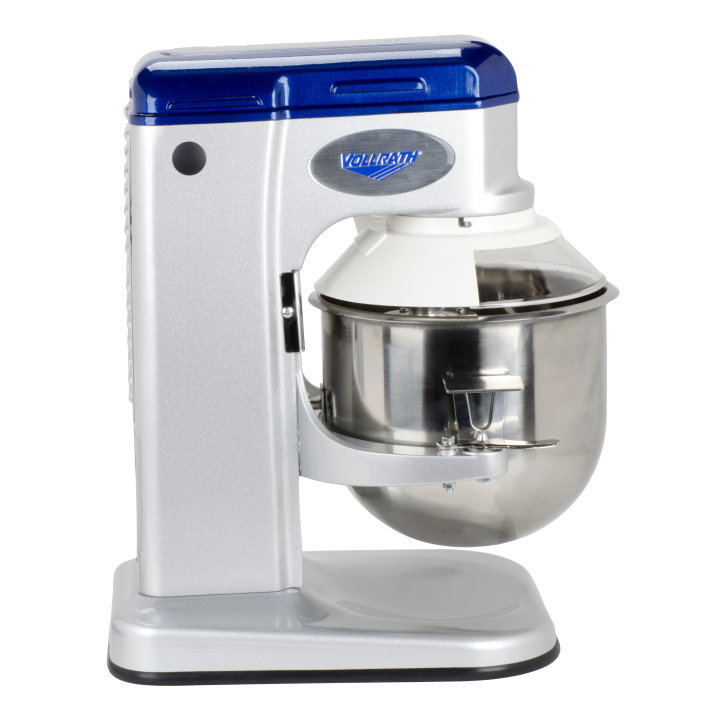

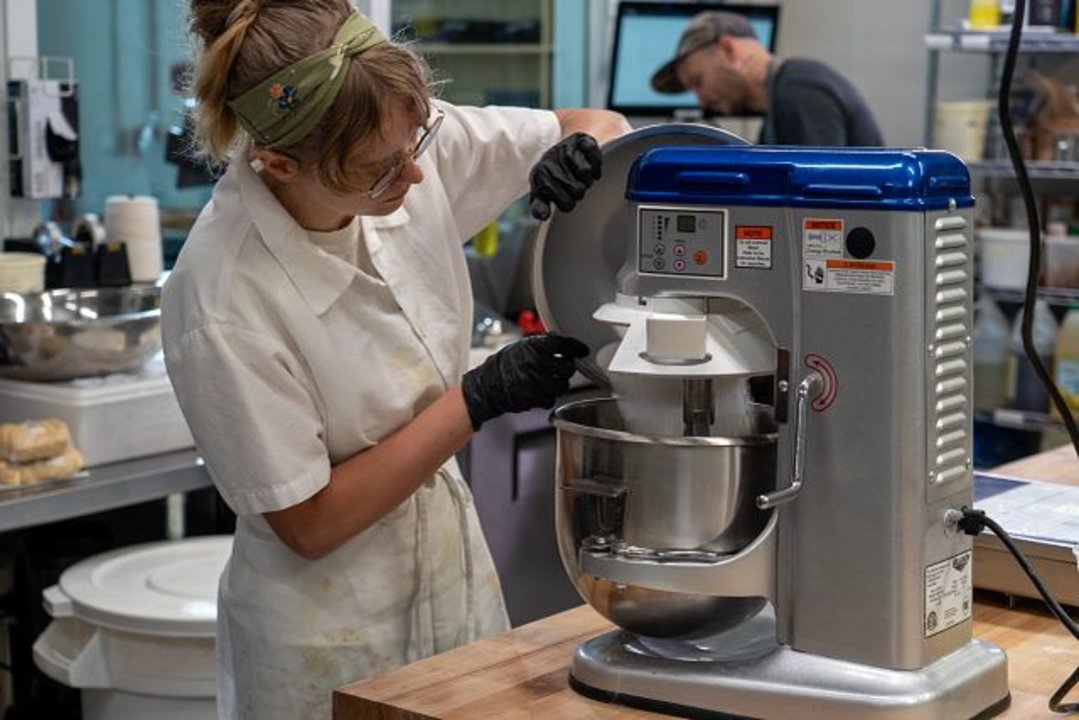

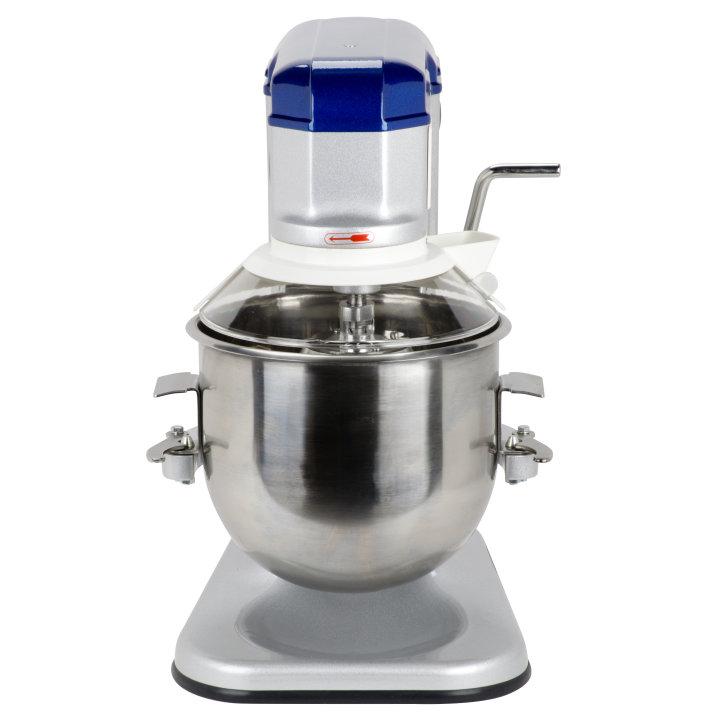

10-quart 110- to 120-volt countertop mixer with safety guard
$2272.14
MSRP
Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$3,786.90
List Price
List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
The Vollrath® 10-quart countertop mixer is an impressive, commercial-grade machine. Featuring a ⅓-motor and a five-speed direct-drive transmission, this mixer is powerful and built for continuous use. The digital control panel allows for easy speed adjustments during use, and a 30-minute timer with automatic shutoff keeps track of mixing time. This item comes with all the accessories required for operation, and the compact design is perfect for transportation or kitchens with limited space.
- Efficiently mixes, whips, and beats a variety of foods

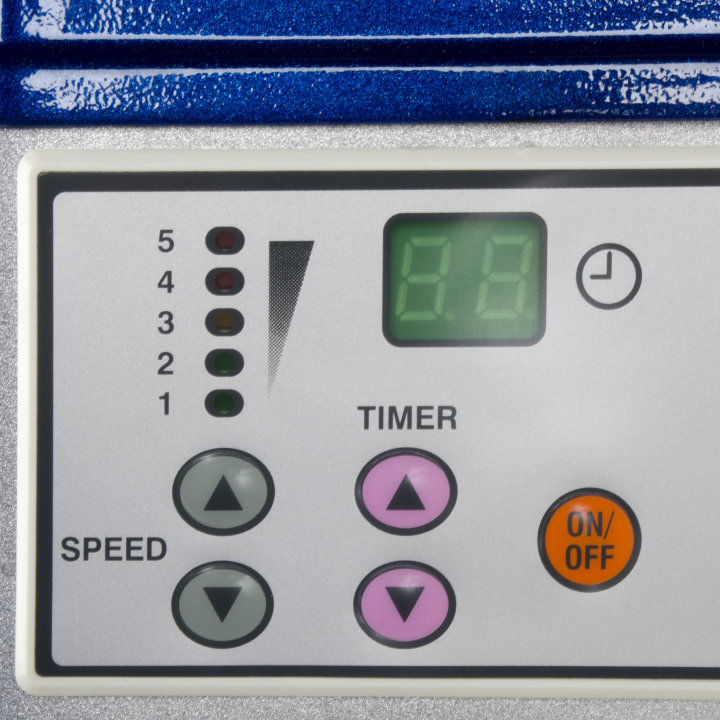

- Digital control panel is easy to read and allows speed adjustments while in use for convenience
- Nonskid rubber base prevents movement
- Stainless steel mixing bowl, dough hook, wire whisk, flat beater and safety guard included
- International models have CE certification only
- ⅓-motor provides plenty of power for efficient mixing
- 10-quart mixing bowl included
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | MIX1010 |
| UPC | 029419720453 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 13.062 x 17.687 x 21.187 |
| (W) Width (IN) | 13.06 |
| (D) Depth (IN) | 17.68 |
| (H) Height (IN) | 21.18 |
| (W) Width (CM) | 33.2 |
| (D) Depth (CM) | 44.9 |
| (H) Height (CM) | 53.8 |
| Size | 10 |
Electrical
| Name | Value |
|---|---|
| Amps | 6 |
| Cord Length (IN) | 6" |
| Cord Length (CM) | 182.9 |
| hp | 1/3 |
| Plug | NEMA 5-15P |
| Voltage | 110-120 |
Volume
| Name | Value |
|---|---|
| Capacity (L) | 9.4 |
| Capacity (OZ) | 320 |
| Capacity (QT) | 10 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 16.25 |
| Case Height | 24.75 |
| Case Length | 21.25 |
| Case Lot Cube (ft.) | 4.86 |
| Case Lot Weight (lbs.) | 51.9 |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| POWERCORD 120V (NEMA5-15P) | XAA0005 | $48.50 |
| CABLE RESTRAINT (FMA SKA FFA) | XAA0012 | $9.70 |
| MIXER GEARBOX GREASE (17.6 OZ) | XMIX0001 | $67.00 |
| MIXER PLANETARY GREASE (OMEGA | XMIX0002 | $109.80 |
| MAIN CIRCUIT BOARD MIX7110 (# | XMIX0005 | $257.40 |
| CONTROL PANEL CIRCUIT BOARD MI | XMIX1002 | $158.50 |
| CONTROL PANEL FASCIA MIX7110 | XMIX1004 | $64.00 |
| MOTOR MIX7110 (#10) | XMIX1006 | $720.90 |
| LIFTING HANDLE MIX7110 (#27) | XMIX1007 | $57.80 |
| BOWL LIFT ELBOW MIX7110 (#26) | XMIX1008 | $21.20 |
| MICROSWITCH (S/ GUARD MIX7110) | XMIX1013 | $42.10 |
| PLANETARY ASSEMBLY COMPLETE M | XMIX1014 | $221.20 |
| TRANSMISSION SHAFT COMPLETE MI | XMIX1015 | $287.40 |
| WORM GEAR SHAFT ASSEMBLY COMP | XMIX1016 | $284.70 |
| TOP COVER BLUE MIX7110 (#1) | XMIX101840 | $57.40 |
| CARBON BRUSH MIX7110 (NO.91) | XMIX1020 | $9.40 |
| CARBON BRUSH CAP MIX7110 (92 | XMIX1021 | $3.50 |
| MOTOR ORING MIX7110 (NO.40) | XMIX1022 | $6.30 |
| MOTOR OIL SEAL MIX7110 (TC15 | XMIX1023 | $7.00 |
| TAPERED PIN MIX7110 (NO.18) | XMIX1024 | $6.80 |
| BEARING (TRANSMISSION SHAFT TO | XMIX1025 | $15.40 |
| BOWL SUPPORT ARM MIX7110 (22 | XMIX1026 | $338.70 |
| RING GEAR MIX7110 (NO.14) | XMIX1027 | $356.00 |
| BOWL GUARD MIXER 7 & 10QT | XMIX1031 | $307.30 |
| BASE GASKET MIX7110 (#58) | XMIX1058 | $14.40 |
| WIRE HARNESS | XMIX1083 | $40.20 |
| BOWL LIFT SUPPORT ANGLE | XMIX1084 | $6.30 |
| FREEZE PLUG SMALL MIX7120 (#3 | XMIX2290 | $14.50 |
| SAFETY SWITCH 20 QT BOWL GUARD | XMIX9893 | $263.90 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
