RDCCB-60SS

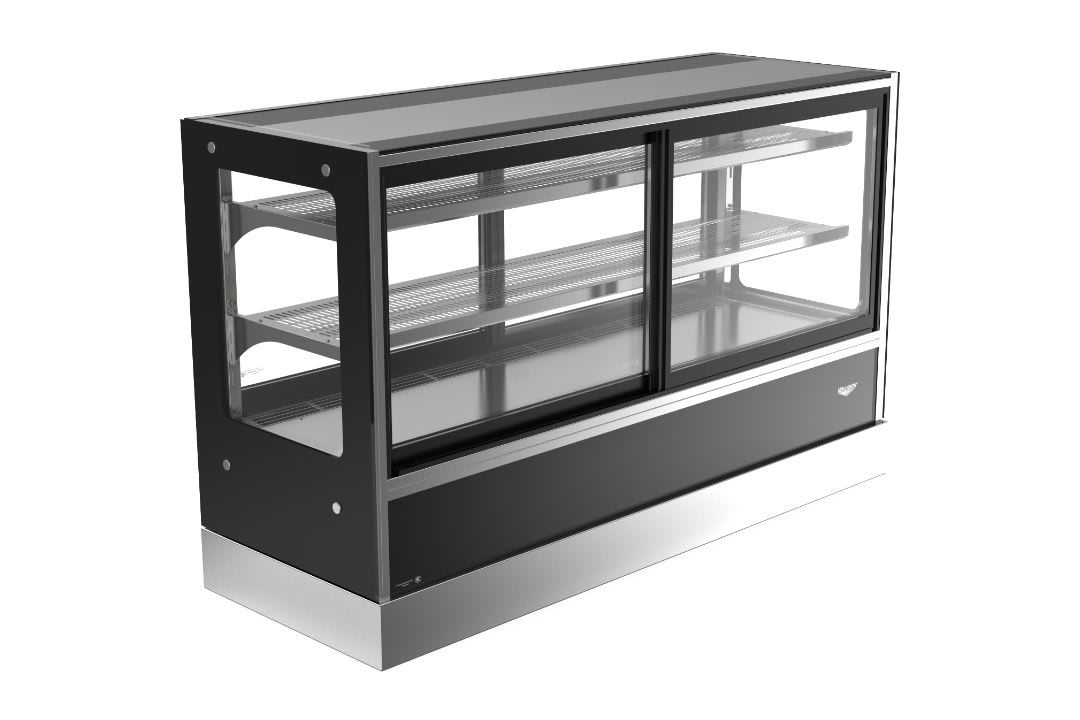

60-inch-wide 120-volt cubed-glass countertop Refrigerated deli display case with self-serve and rear access
Classified by UL to NSF/ANSI 4
This symbol represents products that are certified to meet specific environmental and public health standards. The UL EPH Mark is recognized and accepted as a trusted source for assessing the sanitary design, construction and performance of commercial food equipment. If it shows the word “Classified” above the UL mark, then the product also complies with ANSI/NSF regulations.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
For grab-and-go convenience, turn to the Vollrath® self-serve refrigerated deli display case. It invites customers to serve themselves, with the addition of sliding glass doors on the front and a stylish cubed design with plenty of space for two floating, adjustable shelves. Serving up 120 volts, its precise digital temperature control, interior lighting at the top and at each shelf, and easy-access front and rear sliding doors make the case for must-have convenience.
- Units are UL/NSF/ANSI 7 compliant which allows for Time-Temperature controlled (TCS) foods to be consumed safely by humans
- 32°F to 46°F temperature range adds versatility
- Zero clearance on sides or between units and walls (Note: Top and operator side must remain open for proper operation and service)
- Fans circulate air for accurate, even cooling
- Self-contained system offers improved auto and manual defrost
- Auto defrost is improved to every 3 hours for 10 minutes
- LED Lighting
- Digital thermostat on control panel provides precise settings
- Glass heater in top panel keeps viewing area clear
- Rear sliding doors lift and remove for easy cleaning
- R-290 is a high-performing, environmentally friendly refrigerant
- 4-inch adjustable legs available for purchase separately
- Standard Vollrath 1 year warranty, 5-year limited warranty on compressor
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | RDC9460 |
| UPC | 029419601196 |
Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 59.9 |
| (D) Depth (IN) | 21.5 |
| (D2) Secondary Depth (IN) | 37 |
| Top Shelf Depth (IN) | 13.2 |
| Bottom Shelf Depth (IN) | 10.9 |
| (W) Width (CM) | 152 |
| (D) Depth (CM) | 55 |
| (D2) Secondary Depth (CM) | 94 |
| Top Shelf Depth (CM) | 34 |
| Bottom Shelf Depth (CM) | 28 |
Electrical
| Name | Value |
|---|---|
| Amps | 6.9 |
| Hz | 60 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot Weight (lbs.) | 550.7091 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| Heavy Duty 4" Leg | 2351601-1 | $24.10 |
| 60" LED 0.50M | RDC0084-60L | $192.00 |
| CONDENSOR FAN | RDC0093 | $153.00 |
| RDE TERMINAL BLOCK | RDC0043 | $67.00 |
| FRONT GLASS KIT, RDCCB-60SS | RDC0515 | $990.00 |
| 60" REAR AIR GRILL | RDC0088-60 | $152.00 |
| 60" FAN PANEL ASM | RDC0086-60 | $335.00 |
| CUBED DOOR GASKET | RDC0362 | $59.00 |
| RDE DRY FILTER | RDC0106 | $42.00 |
| HIGH PRESSURE SWITCH | RDC0195 | $57.00 |
| POWERCORD W/STRAIN RELIEF | RDC0501 | $53.00 |
| 60" LED 0.15M | RDC0084-60S | $158.00 |
| EMC3140U COMPRESSOR | RDC0147L | $480.00 |
| REAR DOOR SLIDER BTM WHEEL | RDC0155 | $47.00 |
| EVAPORATOR FAN | RDC0163 | $80.00 |
| 60" CUBED STAINLESS WRAP | RDC0355-60 | $430.00 |
| 48"&60" CUBED CONDENSING UNIT | RDC0067-48&60B | $2,225.00 |
| RDCCB-SS END GLASS ASSM-R | RDC0348 | $550.00 |
| SLOT PLUG, QTY. 4 | RDC0523 | $26.00 |
| COOL HOLDING THERMOMETER | RDC0273 | $48.00 |
| GLASS HARDWARE | RDC0522 | $31.00 |
| CAPACITOR | RDC0112 | $32.00 |
| 60" CUBEED TOP SHELF ASM | RDC0335-60 | $450.00 |
| RDCCB-SS END GLASS ASSM-L | RDC0342 | $550.00 |
| 60" EVAPORATOR | RDC0053-60 | $600.00 |
| GLASS HEATING POWER | RDC0164 | $64.00 |
| 60" BACK SLDNG DOOR TRACK UP | RDC0128-60 | $111.00 |
| POWER FOR LED | RDC0145 | $64.00 |
| 60" CUBED BOTTOM SHELF | RDC0356-60 | $224.00 |
| 60" CUBED DOOR ASM | RDC0357-60 | $630.00 |
| 60" AIR OUTLET DUCT | RDC0042-60 | $148.00 |
| 60"BACK VENT PANEL REAR | RDC0127-60 | $117.00 |
| 3-PIN LED LIGHT SOCKET | RDC0066 | $45.00 |
| RDE HDE NTC SENSOR | RDC0141 | $20.00 |
| RDE FILTER | RDC0039 | $56.00 |
| 60" BOTTOM DOOR TRACK | RDC0115-60 | $110.00 |
| DIGITAL CONTROLLER, RDC | RDC0502 | $180.00 |
| RDE CONDENSER | RDC0149 | $477.00 |
