FC-6DV-36

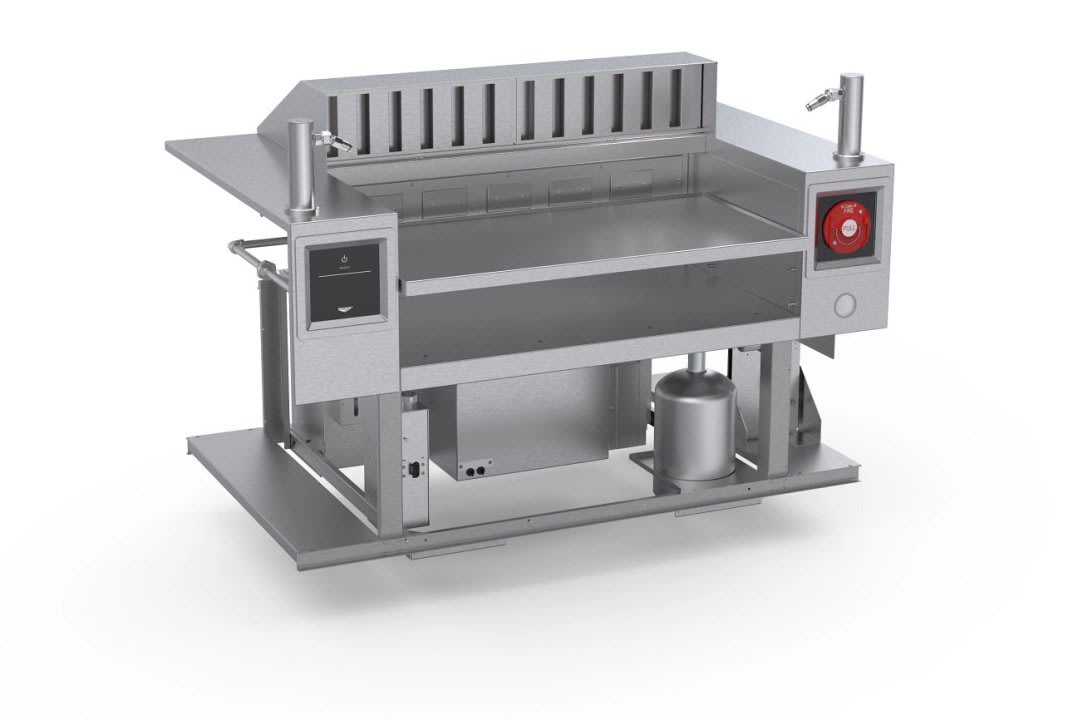

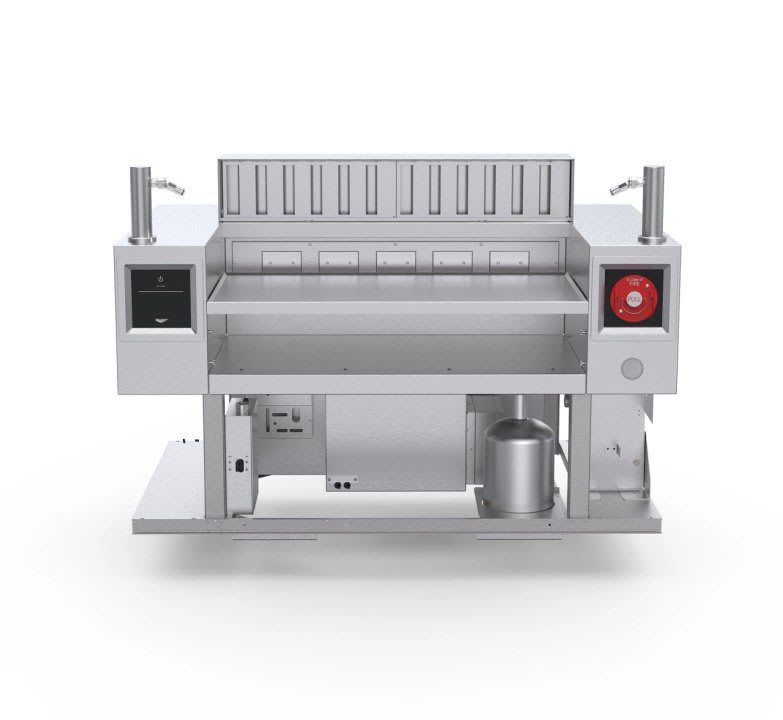

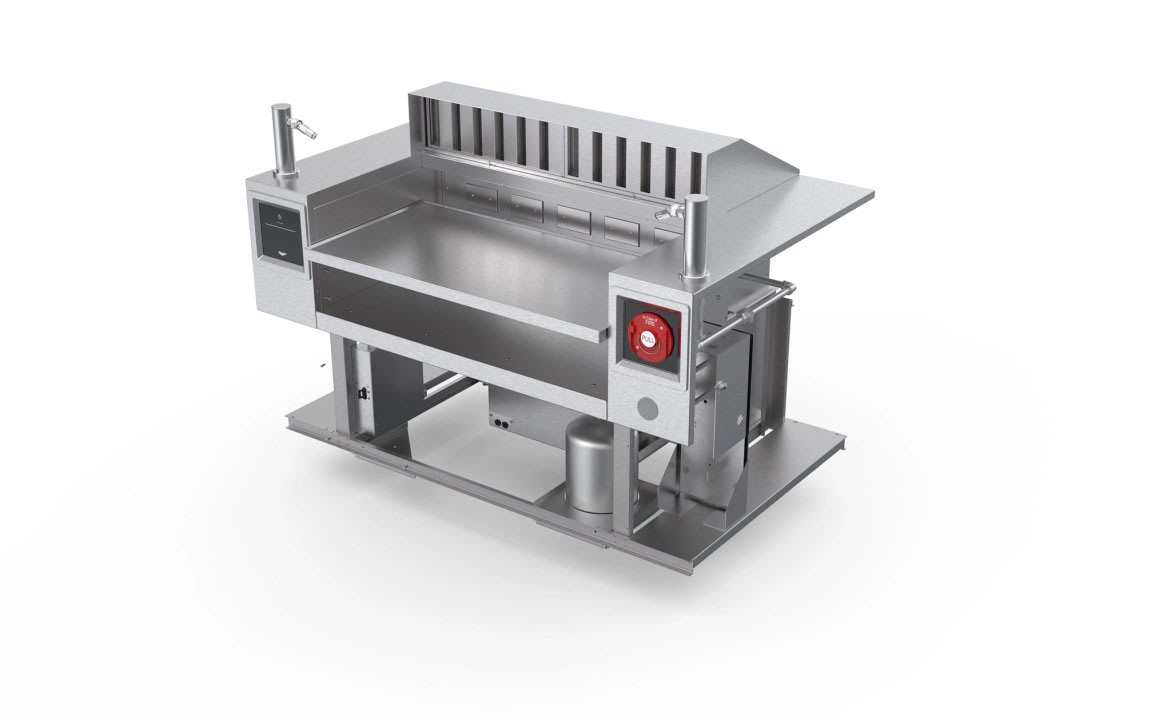

36-inch FlexVent™ versatile slide-in with downdraft vent and fire suppression system
Elevate your serving line by adding a Vollrath® FlexVent™ versatile slide-in with downdraft vent system and fire suppression. This slide-in unit provides unparalleled flexibility for presentation cooking by eliminating the need for a bulky exhaust hood. The self-contained unit is both sophisticated and practical accommodating a variety of electrical cooking equipment – from induction ranges, griddles to sandwich presses, and even fryers – that can be easily interchanged. The included shelf is adjustable to fulfill a variety of height requirements that suit different equipment, ergonomic needs, and health code requirements. Ideal for presentation cooking, this UL Recognized and UL Classified station will fit seamlessly into your custom serving line for an aesthetically pleasing look. NOTES: This product is made to order and cannot be cancelled or returned. This product is UL Recognized. UL Recognized components are incomplete in certain constructional features and require professional installation and subsequent evaluation to relevant safety standards.
- Fully self-contained downdraft recirculating vent and fire suppression system with UL710B Certification eliminates the need for bulky exhaust hoods
- Interchange cord-and-plug cooking equipment, slide-in unit is not intended for use with gas equipment
- Adjustable shelf fulfills a variety of height requirements for equipment, ergonomic needs, and health code requirements and enables the proper function of the fire suppression system
- Fits seamlessly to custom serving lines for aesthetically pleasing look
- Works with industry-wide breath guard configurations as guided by local health code requirements
- Access panel on operator side allows for one side servicing
- UL Recognized to UL710B
- UL Classified to NSF 2
- Max. configurable appliance load: Voltage - 120/208-240; Hz - 60; Wattage - 7200; Amps - 30
*NOTE: Total maximum weight limit for the shelf is 120 pounds, evenly distributed. Compliance with this limit is required for the safe operation of FlexVent.
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | FC-6DV |
| UPC | 029419462421 |

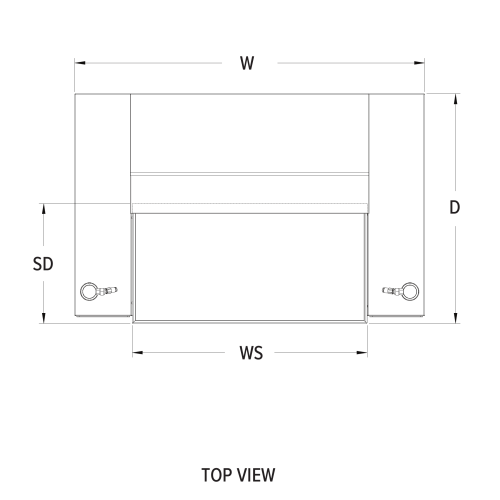

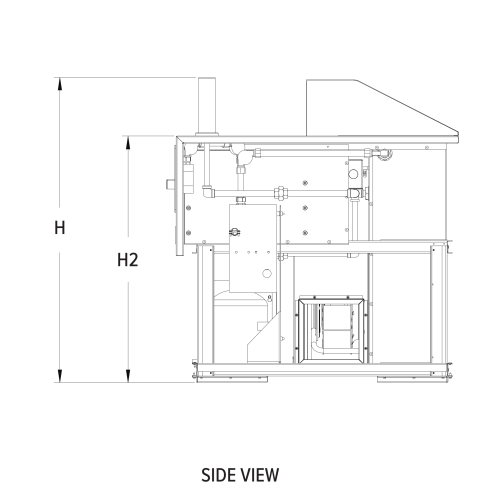

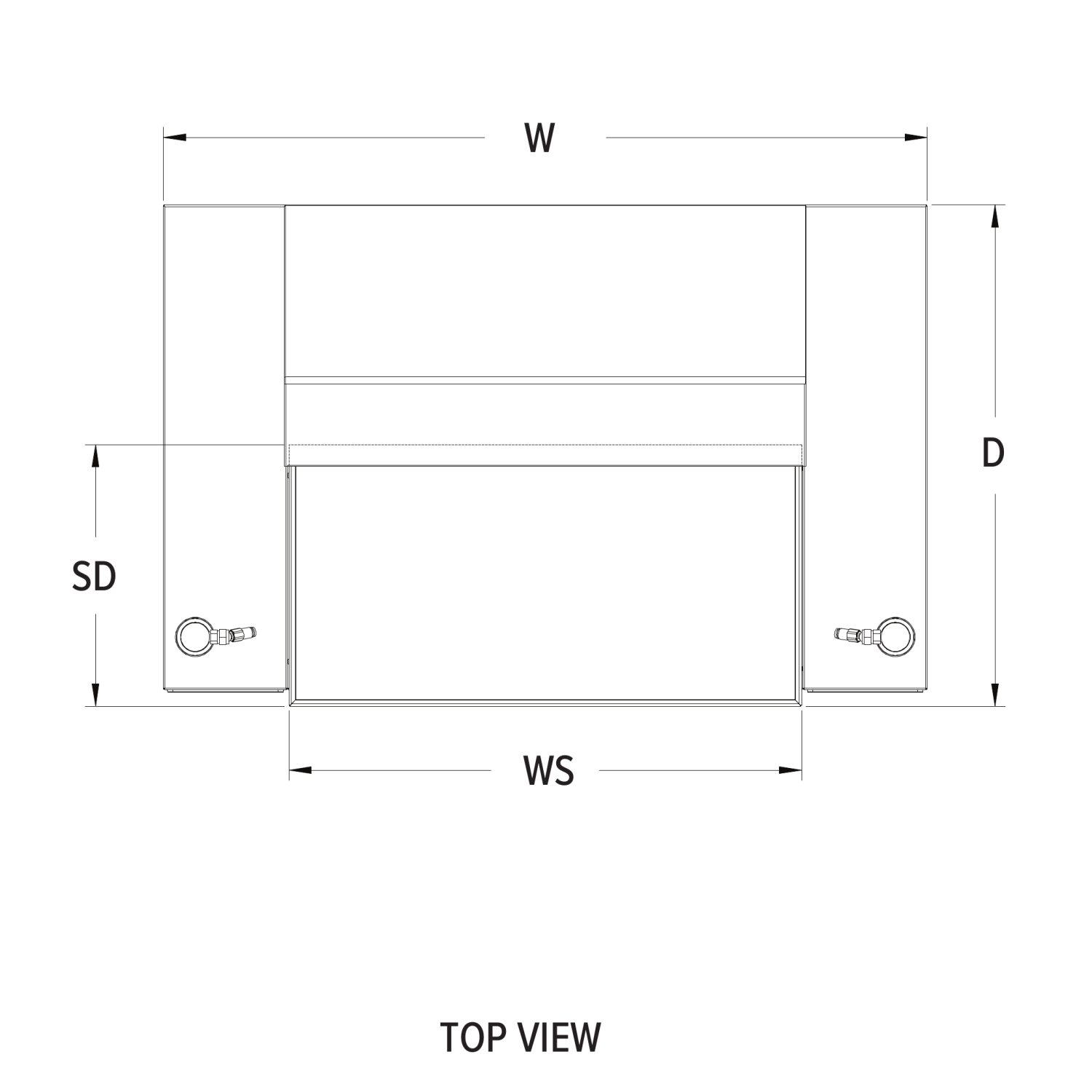

Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 53.5 |
| (D) Depth (IN) | 35.125 |
| (H) Height (IN) | 36.75 |
| (H2) Secondary Height (IN) | 29.625 |
| (WS) Shelf Width (IN) | 35.75 |
| (SD) Shelf Depth (IN) | 18.25 |
| (W) Width (CM) | 135.9 |
| (D) Depth (CM) | 89.2 |
| (H) Height (CM) | 93.3 |
| (H2) Secondary Height (CM) | 75.2 |
| (WS) Shelf Width (CM) | 90.8 |
| (SD) Shelf Depth (CM) | 46.4 |
Electrical
| Name | Value |
|---|---|
| Amps | 3.4 |
| Hz | 60 |
| Voltage | 120 |
| Watts | 420 |
Construction
| Name | Value |
|---|---|
| Product Function | Slide-In Cooking Unit |
Product Parts
| Name | Part # | Price |
|---|---|---|
| 1/4-20 NYLOCK JAM LOCKNUT | 25266-3 | $0.70 |
| NUT 10-32 HEX STAINLESS STEEL | 21547-1 | $0.70 |
| TOGGLE CAP-BLACK | 17939-1 | $1.50 |
| STRAIN RELIEF - FOR 3/8 CORD | 26543-3 | $1.80 |
| RISER BOTTOM TRIM | 352398-2 | $112.74 |
| STRAIN RELIEF, .220-.290 CORD, | 352014-1 | $0.56 |
| SL 165 - STYLE LINK | 2503351-1 | $34.76 |
| INTERLOCK BOX ASSEMBLY | 352031-2 | $599.24 |
| STRAIN RELIEF, .130-.210 CORD, | 352015-1 | $1.09 |
| GREASE FILTER, 6X18 | 352035-2 | $453.33 |
| REMOTE PULL STATION, 50' WIRE | 2503349-1 | $512.72 |
| FLEXVENT CONTROL, WIRE SET | 352002-1 | $132.68 |
| HOOD ASSEMBLY | 352008-2 | $959.39 |
| FLEXVENT CONTROL, UI | 352047-1 | $240.68 |
| 1.5 GAL AGENT TANK ASSEMBLY | 2503342-1 | $809.20 |
| SHELF ASSEMBLY | 352044-2 | $613.46 |
| DRIP TRAY ASSEMBLY | 352034-2 | $112.48 |
| RISER TUBE - 2" DIAMETER | 352054-2 | $104.40 |
| PSC FAN | 351996-1 | $1,245.30 |
| FLEXVENT CONTROL, PRESSURE | 352058-1 | $920.61 |
| NOZZLE SWIVEL ADAPTOR | 2503345-1 | $90.74 |
| PARTICULATE FILTER | 352010-1 | $768.88 |
| RISER CAP | 352051-1 | $108.98 |
| 1W NOZZLE WITH METAL CAPS | 2503344-1 | $136.54 |
| 2" SIGHT GLASS | 352055-1 | $3.06 |
